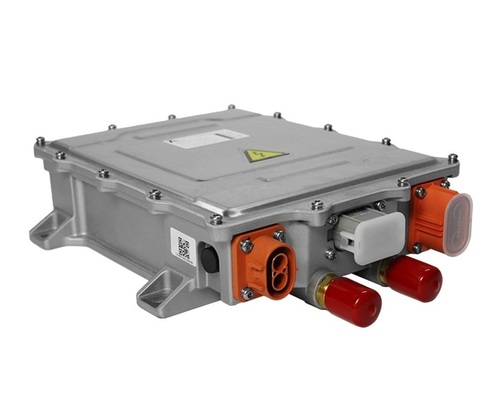

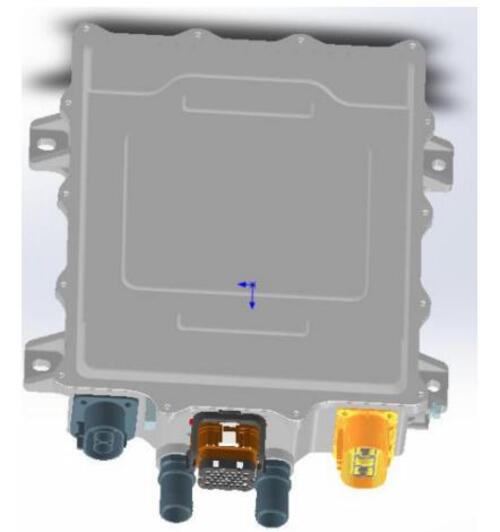

Download:6.6KW OBC Liquid System Specification
Features
Series Specification
Item | Part Name | Model Name | Power (W) | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (A) | Efficiency | Size (mm) | Cooling System | Weight (Kg) | Certificate |
1 | 6.6KW OBC |
ATC6K6-31220-LW | 6600 | 85-265 | 200~450 | 20 | ≥94% | 265.2x331.5x78.3 | Liquid | 7.5 | CE |
2 | ATC6K6-54014-LW | 340~680 | 14 |
Environmental Specification
Working environmental temperature
Area |
Lowest Temperature |
Highest Temperature |
Global |
-40℃ |
60℃ |
Area |
Lowest Temperature |
Highest Temperature |
Global |
-40℃ |
105℃ |
● Humidity:relative humidity 5%~95%,no condensation
● Altitude:≤3000m
● Working noisy:max when working ≤65dB,meet China standard QTC 895-2011
Output
Nominal Voltage Platform |
312V |
540V |
|
Output |
Output voltage range |
200~450V |
400~680V |
Max output current |
20A |
14A |
|
Output power |
6600W@220VAC;3300W@110VAC |
||
Output way |
CV/CC |
||
Efficiency |
≥94% |
||
CV accuracy |
±1% |
||
CC accuracy |
±2% |
||
Ripple voltage coefficient |
±5% |
||
Output voltage rising time |
<5S,overshoot<10% |
||
Shut off response time |
Current decreased below 10% in 300ms, and decreased to 0A in 500ms |
