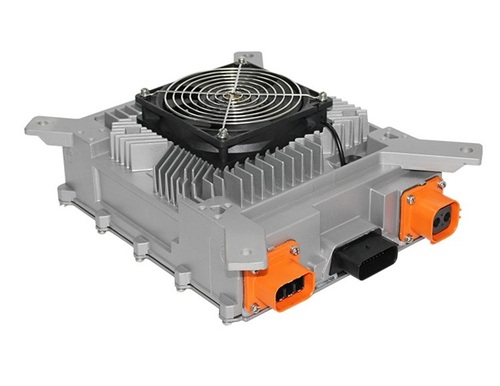

Download: Model No_ATC6K6-10858-A, ATC6K6-14446-A Specification
Features
● Output Power：6.6KW
● Input Voltage：85~265VAC
● Output Voltage：70~177、100~202、200~450、340~680VDC
● Dimensions：268.36x312.8x111.2mm
● Cooling System：Fan
● Communication Method：CAN-BUS
● Weight: ≤7.6KG
Series Specification
| Item | Part Name | Model Name | Power (W) | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (A) | Efficiency | Size (mm) | Cooling System | Weight (Kg) | Certificate |
| 1 | 6.6KW OBC |
ATC6K6-10858-A | 6600 | 85-265 | 70~177 | 58 | ≥94% | 268.36x312.8x111.2 | Fan | 7.6 | CE |
| 2 | ATC6K6-14446-A | 100~202 | 46 | ||||||||
| 3 | ATC6K6-31220-A | 200~450 | 20 | ||||||||
| 4 | ATC6K6-54012-A | 340~680 | 12 |
Environmental Specification
Working environmental temperature
| Area | Lowest Temperature | Highest Temperature |
| Global | -40℃ | 60℃ |
Storage environmental temperature
|
Area |
Lowest Temperature |
Highest Temperature |
|
Global |
-40℃ |
105℃ |
● Humidity：relative humidity 5%~95%，no condensation
● Altitude：≤3000m
● Working noisy：max when working ≤65dB，meet China standard QTC 895-2011
Output
|
Nominal Voltage Platform |
108V |
144V |
312V |
540V |
|
|
Output |
Output voltage range |
70~177V |
100~202V |
200~450V |
340~680V |
|
Max output current |
58A |
46A |
20A |
12A |
|
|
Output power |
6600W@220VAC；3300W@110VAC |
||||
|
Output way |
CV/CC |
||||
|
Efficiency |
≥94% |
||||
|
CV accuracy |
±1% |
||||
|
CC accuracy |
±2% |
||||
|
Ripple voltage coefficient |
±5% |
||||
|
Output voltage rising time |
＜5S，overshoot＜10% |
||||
|
Shut off response time |
Current decreased below 10% in 300ms, and decreased to 0A in 500ms |
||||
