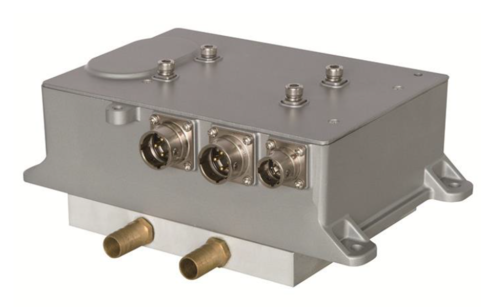

Download: Model No_ATC3K3-48-40-W、ATC3K3-72-40-W、ATC3K3-96-32-W、ATC3K3-144-23-W、ATC3K3-312-10-W、ATC3K3-540-6-W Specificaiton
Features
● Input Voltage：90~265VAC
● Output Voltage：18~68、25~99、34~132、50~198、110-440、170-650VDC
● Cooling System：Liquid
● Communication Method：CAN-BUS
● Weight: ≤6.5KG
Series Specification
| Item | Part Name | Model Name | Power (W) | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (A) | Efficiency |
| 1 | 3.3KW OBC Liquid | ATC3K3-48-40-W | 3300 | 90-265 | 18-68 | 40 | ≥93% |
| 2 | ATC3K3-72-40-W | 25-99 | 40 | ≥93% | |||
| 3 | ATC3K3-96-32-W | 34-132 | 32 | ≥93% | |||
| 4 | ATC3K3-144-23-W | 50-198 | 23 | ≥93% | |||
| 5 | ATC3K3-312-10-W | 110-440 | 10 | ≥93% | |||
| 6 | ATC3K3-540-6-W | 170-650 | 6 | ≥93% |
