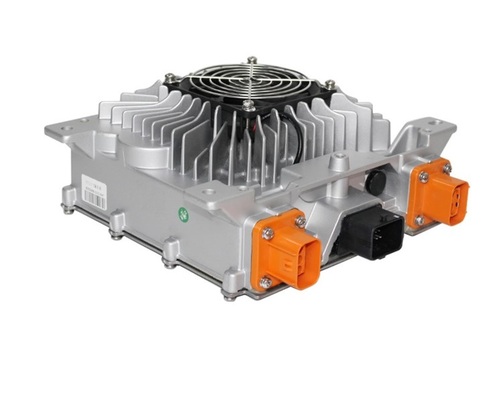

Download:2.6KW OBC Fan System Specification
Features
● Input Voltage：85~265VAC
● Output Voltage：35~70VDC
● Dimensions：264.5x252x100mm
● Cooling System：Fan
● Communication Method：CAN-BUS
● Weight: ≤4.8KG
● Certificate: CE
Environmental Specification
Working environmental temperature
|
Area |
Lowest Temperature |
Highest Temperature |
|
Global |
-40℃ |
55℃ |
Storage environmental temperature
|
Area |
Lowest Temperature |
Highest Temperature |
|
Global |
-40℃ |
105℃ |
● Humidity：relative humidity 5%~95%，no condensation
● Altitude：≤3000m
● Working noisy：max when working ≤65dB，meet China standard QTC 895-2011
Output
|
Output |
Nominal output voltage |
35~70V |
|
Nominal output current |
40A |
|
|
Nominal power |
2600W |
|
|
Output Power |
2600W@220VAC /1600W@110VAC |
|
|
Efficiency |
≥94% |
|
|
Dynamic response time |
＜50ms |
|
|
Voltage regulation |
≤1% |
|
|
Load regulation |
≤1% |
|
|
Voltage control accuracy |
≤1% |
|
|
Current control accuracy |
≤2% |
|
|
Ripple voltage coefficient |
≤5% @nominal working state |
