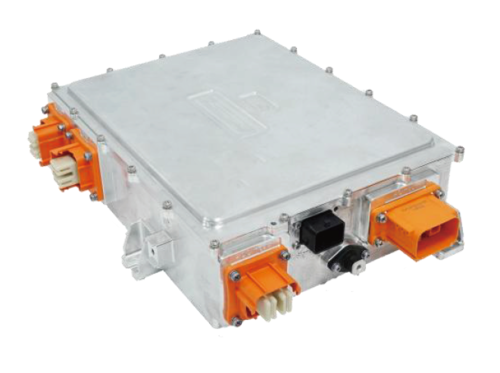

Combo 2.7KW DCDC Converter+11KW OBC+PDU with Inverter


Model No.:AT3HD3KCB11KB-D14C380-W

Power:PDU+11KW OBC+2.7KW DC/DC

Input Voltage:

OBC:304~456VAC DCDC:250~450VDC

Output Voltage:

OBC:250~450VDC DCDC:9~16VDC

Output Current:

OBC:32A DCDC:192A

Efficiency:≧94%

Code AT3HD3KCB11KB





Download : Combo 2.7KW DCDC Converter+11KW OBC+PDU with Inverter Specification

Download : Combo 2.7KW DCDC Converter+11KW OBC+PDU with Inverter 3D Drawing

Features
● Output Power:
OBC:11KW
DCDC:2.7KW
● Input Voltage:
OBC:304~456VAC(three-phase four-wire)
DCDC:270~450VDC
● Output Voltage:
OBC:270~450VDC
DCDC:9~16VDC
● Output Current:
OBC:32A
DCDC:192A
● Dimensions:372x240x98mm
● Cooling System:Liquid, flow rate ≥10L/min
● Communication Method:CAN-BUS
● Weight :≦15KG


Specification

Description Technical Specification Remark
OBC Charging Mode
Rated Output Power 11KW
Input Voltage Range  304~456VAC(three-phase four-wire) Single-phase input 176~264VAC
Input Current 32A Max
Power Factor ≥0.99(@220VAC full load)
Output Voltage Range 250~450VDC Adjustable
Max Output Current 32A
Efficiency ≥94% Rated voltage
Voltage Accuracy ±1%
Current Accuracy ±1%
Inverter Mode
Input Voltage Range 250~450VDC
Output Voltage 220Vac(±5%)/50Hz
Power 6KVA
Efficiency ≥94%
Output Harmonic Distortion (THDv) <3%(linear load)
Dynamic Response   60ms(linear load)
Leakage current protection threshold  ≤30mA
DC/DC Mode
Input Voltage Range 250~450VDC
Input Current Range  <16A(@240VDC full load)
Efficiency ≥94%
Output Voltage Range 9~16VDC
Rated Output Voltage 14VDC
Rated Output Current 192A
Rated Power  2.7KW
Peak Power   3KW
Voltage Ripple 300mV Max
Others
Operating Temperature -40-85℃
Low Voltage Wakeup 12VDC&200mA max (Wakeup signal) Coolant inlet temperature
Wakeup Method CAN, AC, HVDC, PP/CP, EN(hardwire) Wakeup BMS/VCU
CAN Communication CAN-BUS Support reservation charging
Quiescent Current ≤1mA Battery current will be consumed in sleep/standby mode
Protection Input OVP, UVP, output OVP, UVP, OTP, OCP, output short circuit prote-ction, communication fault protection
EMC GB/T18387-2008, EN 55022

Structural Parameters
