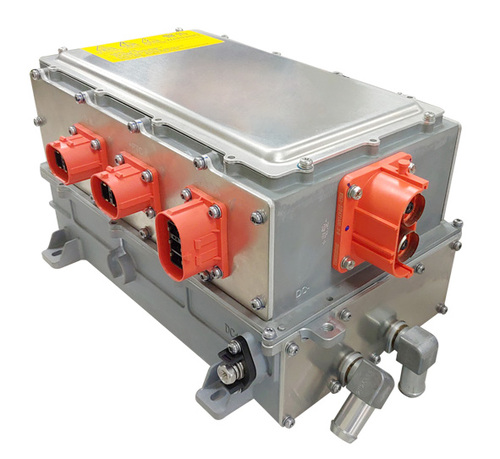

Combo 3 in 1 PDU+6.6KW OBC+2.5KW DC/DC Converter with Inverter Mode


Model No.:AT3HD2KC6K6-D14C380-W

Protection Level:IP67

Dimensions (mm) :326x211x180mm

Weight (KG) :≤18KG

Code AT3HD2K5CB6K6





Download : Combo 3 in 1 PDU+6.6KW OBC+2.5KW DC/DC Converter with Inverter Mode Specification

Product Features :
On Board Charging Mode
- Rated output power: 6.6KW
- Input Voltage:85-265VAC
- Output voltage range:250-450VDC
Inverter mode
- Power: 6.6KVA
- Input Voltage:250-450VDC
- Output voltage range:220Vac(±5%)/50Hz
DC/DC Mode
- Input voltage range:250-450VDC
- Input current range:<16A @240Vdc full load Output voltage range:9-16V
- Rated power:2.5KW
- Communication Method:CAN Bus
- Full digital software design, redundant protection function design

Device parameters

Part Name

Fuse

Symbol

Contactor

Symbol

Resistor

Symbol

Air Conditioner (A/C)

35A

F2

/

/

/

/

PTC(Positive)

35A

F3

20A

K4

/

/

OBC

35A

F4

/

/

/

/

Pre charge(Positive)

/

/

20A

K5

200Ω

R1

Battery Main contactor(Positive)

/

/

250A

K2

/

/

DC fast charge Socket (Positive)

/

/

250A

K1

/

/

DC fast charge Socket (Negative)

/

/

250A

K6

/

/

MCU(Positive)

450A

F1

250A

K3

/

/
