Combo 6.6KW OBC+2KW DC/DC Converter  |Products|Combo_(2/3/4/5) in 1+PDU

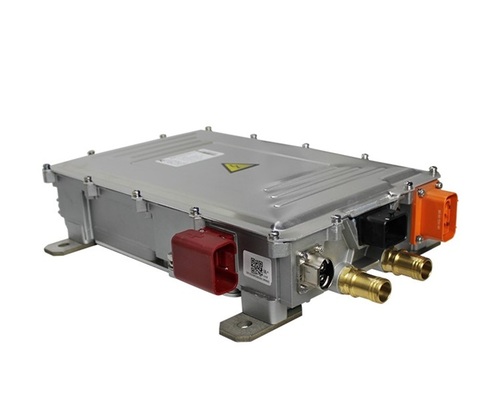

Combo 6.6KW OBC+2KW DC/DC Converter


Model No.:AT2KD6K6B-D14B312-LW

Power:6.6KW OBC+2KW DC/DC

Input Voltage:

OBC:85-265VAC DCDC:206~454VDC

Output Voltage:

OBC:200~450VDC DCDC:14VDC

Output Current:

OBC:20A DCDC:143A

Efficiency:≧94%

Code AT2KD6K6B-D14B312-LW






Download : Combo 6.6KW OBC+2KW DC/DC Converter Specification


Features
● Output Power:OBC:6.6KW
DCDC:2KW
● Input Voltage:
OBC:85~265VAC
DCDC:206~454VDC
● Output Voltage:
OBC:200~450VDC
DCDC:14VDC
● Output Current:
OBC:20A
DCDC:143A
● Dimensions:290.3x380x87mm
● Cooling System:Liquid
● Communication:CAN
● Weight :≦8.7KG


Series Specification



Item Part Name Model Name Power (W) Input Voltage (VAC) Output Voltage (VDC) Output Current (A) Efficiency Size (mm) Cooling System Weight (Kg) Certificate
1 C6.6KW+D2KW AT2KD6K6B-D14B312-LW OBC:6600
DCDC:2000
OBC:85-265
DCDC:206-454Vdc
OBC:200-450
DCDC:14
OBC:20
DCDC:143
94% 290.3x380x87 Liquid 8.7 CE


Environmental Specification
Working environmental temperature

Area

Lowest Temperature

Highest Temperature

Global

-40℃

55℃


Storage environmental temperature

Area

Lowest Temperature

Highest Temperature

Global

-55℃

95℃



●Humidity:relative humidity 5%~95%,no condensation

●Altitude:≤3000m

●Working noisy:max when working ≤65dB,meet China standard QTC 895-2011


Electrical Characteristics

OBC Charging mode

Nominal Voltage Platform

312V



Output

Output voltage range

200~450V

Max output current

20A

Output power

                               6600W@220VAC;3300W@110VAC

Output way

CV/CC

Efficiency

≥94%

CV accuracy

±1%

CC accuracy

±2%

Ripple voltage coefficient

±5%

Output voltage rising time

                                      <5S,overshoot<10%

Shut off response time

Current decreased below 10% in 300ms, and decreased to

0A in 500ms

























DCDC converter mode







Output

Nominal output voltage

14V

Output voltage range

9~15V

Nominal output current

143A

Peak current

172A

Nominal power

2000W

Peak power

2400W lasting 6 minutes

Efficiency

≥94%

Dynamic response time

<50ms

Voltage regulation

≤1%

Load regulation

≤1%

Voltage control

accuracy

≤1%

Current control

accuracy

≤2%

Quiescent current

≤1mA @14V

Ripple voltage

coefficient

≤2% @nominal working state
