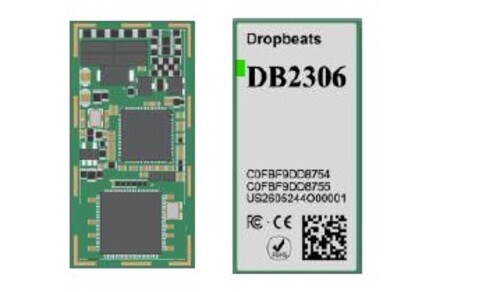

EV Charging Controller ( EVCC)
Model No.:AT-2306
Features
1. EVCC controller supporting CCS / MCS high-voltage charging
2. Compliance with DIN 70121, ISO 15118, IEC 61851 standards
3. Integrated Home Plug Green PHY communication
4. Supports Plug & Charge and bidirectional charging
5. Built-in Hardware Security Module (HSM)
6. Provides SPI / UART host interfaces
7. Operating voltage 3.3 V, current approx. 300–400 mA
8. Metal-shielded module, size 22.9 × 45.7 × 4.4 mm
9. Operating temperature –40 °C to +85 °C
10. Suitable for CCS and MCS charging applications
