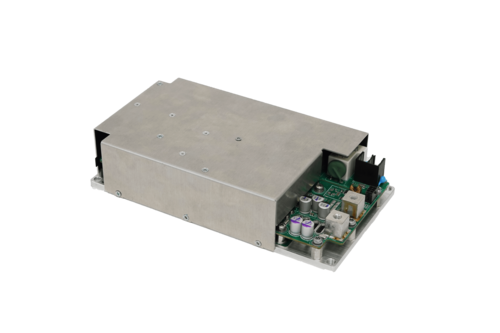

Features
●Output Power：6KW
●Input Voltage：400~750VDC
●Output rated voltage：27.5VDC
●Output Currant：218A
●Dimensions：242x133x53mm
●Cooling System：Moudle
●Communication Method：CAN-BUS
●Weight: ≦2.5KG
Series Specification
| Item | Part Name | Model Name | Power (W) | Input Voltage (Vdc) |
Output Voltage (Vdc) |
Output Current (A) |
Efficiency | Size (mm) | Cooling system | Weight (Kg) | Certificate |
| 1 | 6KW DC/DC CONVERTER |
ATD6K-540S27-M | 6000 | 400~750 | 27.5 | 218 | ≥95% | 242x133x53 | N/A | 2.5 | GB/T |
Specification
|
Description |
Technical specifications |
Remark |
|
Operating temperature |
-40~85℃ |
Coolant inlet temperature |
|
Rated output power |
6KW |
Peak: 6.6KW ,≦6 mins |
|
Input voltage range |
400~750VDC |
|
|
Output rated voltage |
27.5VDC |
20~30V presettable |
|
Rated output current |
218A |
|
|
Auxiliary power |
9~32VDC |
VCC |
|
Efficiency |
≥95% |
Conditionally , will provide test result by request |
|
Output voltage ripple |
≤500mVPK-PK |
|
|
Output voltage accuracy |
±1% |
|
|
Wake-up method |
CAN 、KL15 、 High Voltage DC input |
|
|
Communication method |
CAN-BUS |
|
|
Quiescent Current |
≦2mA |
Consume battery current in sleep/stop state |
|
Protection characteristics |
Input OVP/UVP, output OVP/UVP,OTP, input reverse protection, output short circuit protection, OCP, OTP |
|
|
EMC characteristics |
GB/T 18655-2010 |
|
|
Dimensions |
242x133x53mm |
|
|
Cooling System |
Liquid cooling , flow rate ≧12L/min |
≦30 L/min ,suggested |
|
Protection Level |
IP67 |
|
|
Weight |
≦2.5KG |
|
Structural parameters (unit:mm)
