Features
●Output Power：6KW
●Input Voltage：400~750VDC
●Output rated voltage：27.5VDC
●Output Currant：218A
●Dimensions：326x211x83mm
●Cooling System：Liqiud
●Communication Method：CAN-BUS
●Weight: ≦5KG
Series Specification
| Item | Part Name | Model Name | Power (W) | Input Voltage (Vdc) |
Output Voltage (Vdc) |
Output Current (A) |
Efficiency | Size (mm) | Cooling system | Weight (Kg) | Certificate |
| 1 | 6KW DC/DC CONVERTER |
ATD6K-540S27-W | 6000 | 400~750 | 27.5 | 218 | ≥95% | 326x211x83 | Liquid | 5 | GB/T |
Specification
|
Description |
Technical specifications |
Remark |
|
Operating temperature |
-40~85℃ |
Coolant inlet temperature |
| Rated output power | 6KW | Peak: 6.6KW ,≦6 mins |
| Input voltage range | 400~750VDC |
|
| Output rated voltage | 27.5VDC | 20~30V presettable |
| Rated output current | 218A |
|
| Auxiliary power | 9~32VDC | VCC |
| Efficiency | ≥94% |
Conditionally , will provide
test result by request
|
| Output voltage ripple | ≤500mVPK-PK |
|
| Output voltage accuracy | ±1% |
|
| Wake-up method | CAN 、KL15 、 High Voltage DC input |
|
| Communication method | CAN-BUS |
|
| Quiescent Current | ≦2mA |
Consume battery current in sleep/stop
state |
|
|
|
|
| EMC characteristics | GB/T 18655-2010 |
|
| Dimensions | 326x211x83mm |
|
| Cooling System | Liquid cooling , flow rate ≧12L/min |
≦30 L/min ,suggested
|
| Protection Level | IP67 |
|
| Weight | ≦5KG |
|

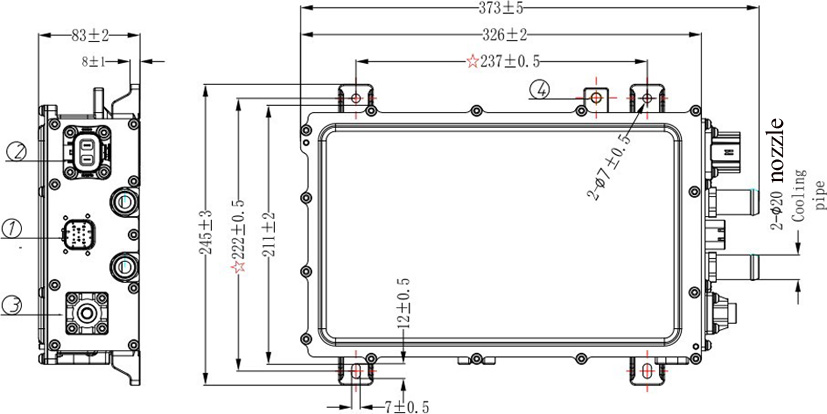

Structural parameters (unit:mm)
