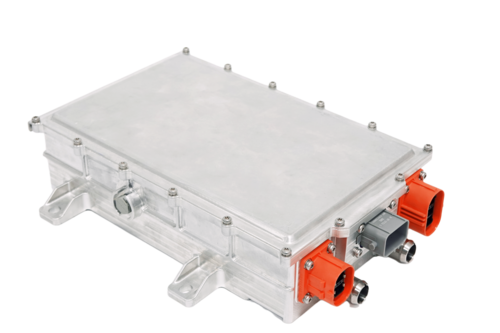

Download: Model No_ATCB6K6B-220S380-W Specification
Features
● Charging Standard: IEC
● Output Power：6.6KW
● Input Voltage：85~265VAC
● Output Voltage：250~450VDC
● Dimensions：326x211x83mm
● Cooling System：Liquid (water nozzieψ20)
● IP Rating：IP67
● Communication：CAN
● Enclosure: Aluminum alloy made
● Software: Digital software design
● Inverter Function: Supported
Specification
| Description | Technical Specification | Remark |
| OBC Charging Mode | ||
| Rated Output Power | 6.6KW | |
| Input Voltage Range | 85~265VAC | |
| Input Current | 32A Max | |
| Power Factor | ≥0.99(@220Vac full load) | |
| Output Voltage Range | 250~450VDC | Adjustable |
| Max Output Current | 20A | |
| Efficiency | ≥94% | Rated voltage & Specific Load |
| Voltage Accuracy | ±1% | |
| Current Accuracy | ±1% | |
| Inverter Mode | ||
| Input Voltage Range | 250~450VDC | |
| Output Voltage | 220VAC(±5%)/50Hz | |
| Power | 6KVA | |
| Efficiency | ≥94% | |
| Output Harmonic Distortion (THDv) | <3%(Resistance load) | |
| Dynamic Response | 60ms(Resistance load) | |
| Leakage Current Protection Threshold | ≤30mA | |
| Others | ||
| Operating Temperature | -40~85℃ | Coolant inlet temperature |
| Low Voltage Wakeup | LVDC&200mA max (Wakeup signal) |
Wakeup BMS/VCU Voltage follow VCC+ |
| Wakeup Method | CAN, AC, PP/CP, EN(Hardwire) | Support reservation charging |
| CAN Communication | CAN-BUS | |
| Quiescent Current | ≤1mA | Battery current consumed in sleep/ standby mode |
| Protection | Input OVP,UVP, output OVP, UVP, OTP, OCP, output short circuit protection, communication fault protection | |
| EMC | GB/T18387-2008, EN 55022 | |
