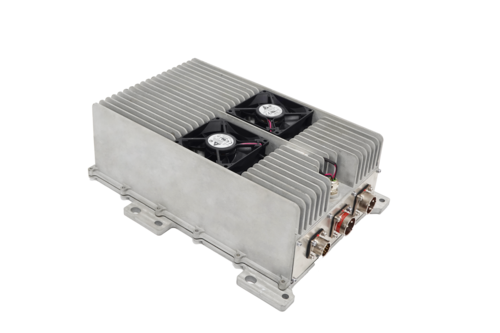

Download:6.6KW On Board Charger Fan
Features
● Charging Standard: IEC
● Output Power：6.6KW
● Input Voltage：90-264VAC
● Output Voltage：200-450VDC
● Dimensions：396x244x126mm
● Cooling System：Fan
● Communication Method：CAN-BUS
● Weight: ≤12KG
Series Specification
| Item | Part Name | Model Name | Power (W) | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (A) | Efficiency | Size (mm) | Cooling System | Weight (Kg) |
| 1 | 6.6KW OBC | ATC6K6-220S380-M | 6600 | 85-265 | 200~450 | 20 | ≥94% | 279x172x58 | N/A | 4.5 |
| 2 | ATC6K6-220S540-M | 400~650 | 14 | |||||||
| 3 | ATC6K6-220S640-M | 450~750 | 12 | |||||||
| 4 | ATC6K6-220S380-A | 200~450 | 20 | 324x211x119 | Fan | 9 | ||||
| 5 | ATC6K6-220S540-A | 400~650 | 14 | |||||||
| 6 | ATC6K6-220S640-A | 450~750 | 12 | |||||||
| 7 | ATC6K6-220S380-W | 200~450 | 20 | 326x211x83 | Liquid | 8 | ||||
| 8 | ATC6K6-220S540-W | 400~650 | 14 | |||||||
| 9 | ATC6K6-220S640-W | 450~750 | 12 |
Specification
| Description | Technical specifications | Remark | |
| Rated output power | 6.6KW | ||
| Input voltage range | 90~264VAC | ||
| Output voltage range | 200-450VDC | ||
| Maximum output current | 20A | ||
| Auxiliary power VCC | 9-18VDC | VCC | |
| Efficiency | ≥96% | Rated voltage | |
| Voltage accuracy | ±1% | ||
| Current accuracy | ±3% | ||
| Wake up method | AC、CP/PP、EN | ||
| Communication method | CAN-BUS | ||
| Quiescent Current | ≤2mA | The battery current is consumed in the sleep/stop state. | |
| Protection characteristics | Input over and under voltage, output over and under voltage, over temperature protection, over current protection, output short circuit protection, battery reverse connection protection, communication fault protection | ||
| Electromagnetic compatibility characteristics | GB/T18387-2008，EN 55022 | ||
| Operating temperature | -40-85℃ | ||
| Dimensions | 396x244x126mm | ||
| IP Rating | IP67 (except fan) | ||
| Cooling System | Fan | ||
| Weight | ≤12KG | ||

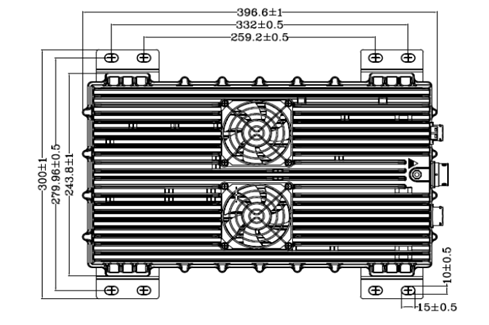

Structural parameters
.png)
.png)

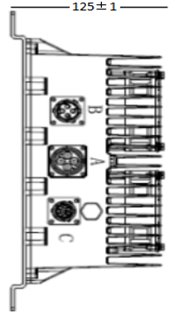

Connector information
| Position | Function | Plug model | Maker |
| A | AC input | C10518N1-04-1-2 G002 | 中航光电 |
| B | DC output | RT06144SNHEC03 | Amphenol |
| C | Signal socket | RT06128SNHEC03 | Amphenol |
Interface definition
| Function | Model | Description | ||||||||||||||||||
| AC input(A) | C10518N1-04-3-1 G001 | 1 | L (FireWire) | |||||||||||||||||
| 2 | N (zero line) | |||||||||||||||||||
| 3 | PE (Protected Ground) | |||||||||||||||||||
| 4 | NC | |||||||||||||||||||
| DC output(B) | RT00144PN03 | A | Output positive | |||||||||||||||||
| B | NC | |||||||||||||||||||
| C | Output negative | |||||||||||||||||||
| D | NC | |||||||||||||||||||
| Signal socket(C) | RT00128PN03 | A | CAN-H | |||||||||||||||||
| B | CP | |||||||||||||||||||
| C | PP | |||||||||||||||||||
| D | Constant battery power (12V input) | |||||||||||||||||||
| E | OBC-EN (wake-up signal) | |||||||||||||||||||
| F | NC | |||||||||||||||||||
| G | CAN-L | |||||||||||||||||||
| H | GND | |||||||||||||||||||
