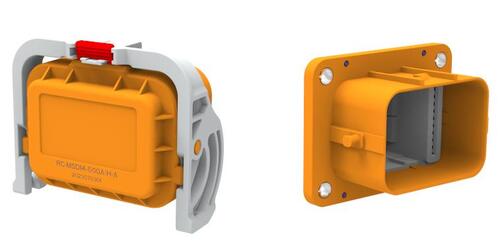

Manual Service Disconnector ( MSD14)
Model No.::RC-MSD14-T(Z)-H-A(B)(C)
Model No.:RC-MSD14-T(Z)-H-A(B)(C) 2D
Download: Model No_ :RC-MSD14-T(Z)-H-A(B)(C) 3D Drawing
Download: Model No_ :RC-MSD14-T(Z)-H-A(B)(C) 3D Drawing
Remarks:
-
- Model "RC-MSD14-T-H-A" means equipped with 500A/500V Zhongbei fuse, MSD14 plug with high-voltage interloc k;
- Plug model without fuse and high-voltage interlock: RC-MSD14-T-A;
- Plug model with high-voltage interlock without fuse: RC-MSD14 -T-H-A;
- Fuse specification table:
|
Fuse brand |
Selection c ode |
Fuse rating current |
Fuse brand |
Selection co de |
Fuse rating current |
|
Zhongbei |
A |
500A |
Medium melti ng |
C |
500A |
|
A1 |
450A |
C1 |
450A |
||
|
A2 |
400A |
C2 |
400A |
||
|
A3 |
350A |
C3 |
350A |
||
|
A4 |
315A |
C4 |
315A |
||
|
A5 |
250A |
C5 |
250A |
||
|
A6 |
200A |
C6 |
200A |
||
|
Basman |
B |
500A |
C7 |
160A |
|
|
|
C8 |
550A |
|||
|
C9 |
630A |
||||
|
Remarks: The selection of fuses should be calculated by contacting our technology after comprehensively c onsidering the ambient temperature coefficient, current density coefficient, altitude coefficient, heat dissipati on coefficient, and cyclic load coefficient. The calculation results need to consult the corresponding fuse ma nufacturers. |
|||||
