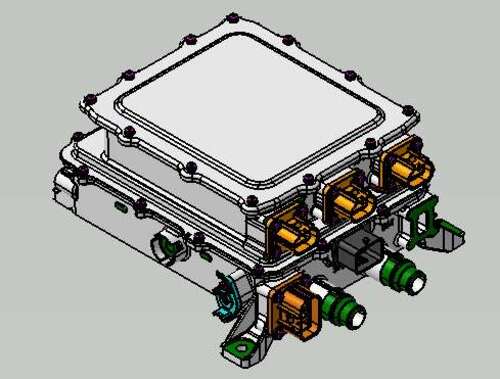

3 in 1 PDU integrated 2.5KWDC/DC converter & 6.6KW Uni-directional OBC Liquid Cooled System
Model No.:AT3PD2K5C6K6-D14C350-W
Output Power: DC/DC Converter: 2.5KW OBC: 6.6KW
Input Voltage :
OBC: 90~264VAC DC/DC: 200~500VDC
Output Voltage :
DC/DC: 13.8~14.6VDC OBC: 200~500 VDC Rated Voltage: 350Vdc
Code 3PD2K5C6K6D14C350
Download :
3 in 1 PDU integrated 2.5KWDC/DC converter & 6.6KW Uni-directional OBC
Liquid Cooled System
Model No.: AT3PD2K5C6K6-D14C350-W
Features
1. Output Power: DC/DC Converter: 2.5KW
OBC: 6.6KW
2. Input Voltage:
OBC: 90~264VAC DC/DC: 200~500VDC
3. Output Voltage:
DC/DC: 13.8~14.6VDC
OBC: 200~500 VDC Rated Voltage: 350Vdc
4. Communication Method: CAN-BUS
5. Cooling Mothed: Liquid Cooled
6. Weight: ≦ 8.5KW
7. Enclosure: Aluminum alloy
8. IP Rating: IP67
9. Software: Digital software design
10. Inverter function: without supported
