3 in 1 PDU integrated 2.5KWDC/DC converter & 6.6KW Bi-directional OBC Liquid Cooled System  |Products|Combo_(2/3/4) in 1+PDU|3 in 1

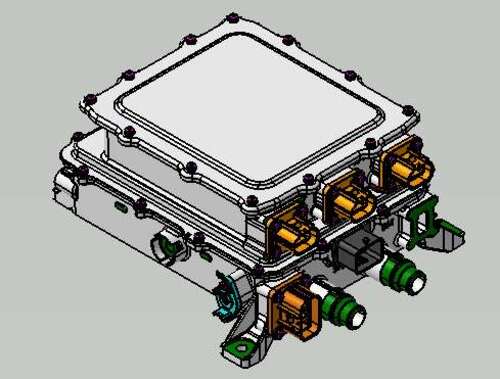

3 in 1 PDU integrated 2.5KWDC/DC converter & 6.6KW Bi-directional OBC Liquid Cooled System


Model No.:AT3PD2K5C6K6B-D14C350-W

Output Power: DC/DC Converter: 2.5KW OBC: 6.6KW

Input Voltage :

OBC: 90~264VAC DC/DC: 200~500VDC

Output Voltage :

DC/DC: 13.8~14.6VDC OBC: 200~500 VDC Rated Voltage: 350Vdc

Code 3PD2K5C6K6BD14C350






Download :
3 in 1 PDU integrated 2.5KWDC/DC converter & 6.6KW Bi-directional OBC
Liquid Cooled System
Model No.: AT3PD2K5C6K6B-D14C350-W



Features1. Output Power: DC/DC Converter: 2.5KW
OBC: 6.6KW
2. Input Voltage:
OBC: 90~264VAC DC/DC: 200~500VDC
3. Output Voltage:
DC/DC: 13.8~14.6VDC
OBC: 200~500 VDC Rated Voltage: 350Vdc
4. Communication Method: CAN-BUS
5. Cooling Mothed: Liquid Cooled
6. Weight: ≦ 8.5KW
7. Enclosure: Aluminum alloy
8. IP Rating: IP67
9. Software: Digital software design
10. Inverter function: supported
