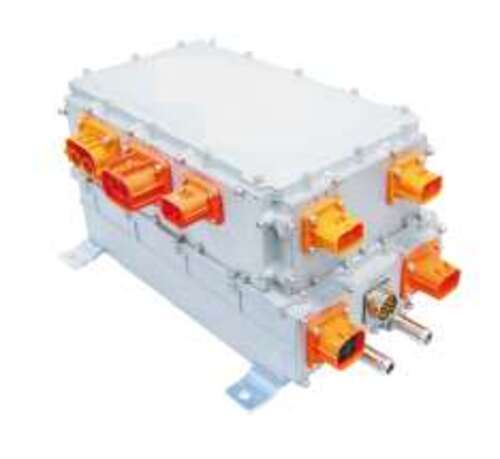

3 in 1 PDU+2KW DCDC Converter 6.6KW OBC Bidirectional


Model No.:AT3HD2KCB6K6B-D14C380-W

Nominal Output Power: DC/DC: 2KW OBC: 6.6KW

Input Voltage Range:

DC/DC: 250-450VDC OBC: 85-265VAC

Output Voltage Range:

DC/DC: 9-16V Nominal: 14V OBC: 250-450VDC

Dimensions: 329x211x 180 mm

Code 3HD2KCB6K6B-D14C380






Download : Model No_AT3HD2KCB6K6B-D14C380-W



Features
1.   Nominal Output Power:
      DC/DC: 2KW OBC: 6.6KW
2.   Input Voltage Range:
      DC/DC: 250-450VDC OBC: 85-265VAC
3.   Output Voltage Range:
      DC/DC: 9-16V Nominal: 14V OBC: 250-450VDC
4.   Dimensions: 329x211x 180 mm
5.   Weight: ≤18KG
6.   Cooling System: Liquid, flow rate ≥ 8L/min
7.   IP Rating: IP67
8.   V2L (Vehicle to Vehicle & Vehicle to Load): Supported
9.   With pre-charge & galvanically isolated
10. Enclosure: Aluminum alloy
11. Software: Digital software design
12. Inverter Function: Supported
13. Online Upgrade & Fault Diagnosis: Supported
