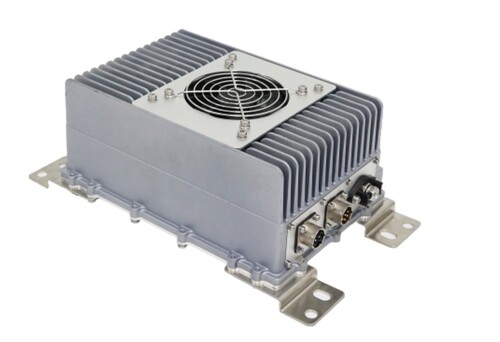

2KW DC/DC Converter Fan System


Model No.:ATD2K-380S14-A

Output Power:2KW

Input Voltage:250-450Vdc

Output Voltage:13.8VDC

Dimensions:262x180x120mm

Cooling System:Fan

Protection Level:IP67

Communication Method:CAN-BUS

Code 2KW_DCDC_Fan






Download: 2KW DC/DC Converter-Fan

Features

● Output Power:2KW
● Input Voltage:250-450Vdc
● Output Voltage:13.8VDC
● Dimensions:262x180x120mm
● Cooling System:Fan
● Protection Level:IP67
● Communication Method:CAN-BUS
● Enclosure: Aluminum alloy made
● Software: Digital software design


Series Specification

Item Part Name Model Name Power (W) Input Voltage
 (Vdc)
Output Voltage
 (Vdc)
Output Current
(A)
Efficiency Size (mm) Cooling system Weight (Kg)
1 2KW DC/DC
CONVERTER
ATD2K-380S14-M 2000 250~450 13.8 145 95% 180x120x50 N/A 1.6
2 ATD2K-540S14-M 400~750
3 ATD2K-380S14-A 250~450 262x180x120 Fan 4.5
4 ATD2K-540S14-A 400~750
5 ATD2K-380S14-W 250~450 234x156x80 Liquid 3
6 ATD2K-540S14-W 400~750



Specification

Description

Technical specifications

Remark

Operating temperature

-40~85

Temp. for air inlet port

Rated output power

2KW

Peak: 2.4 KW

Input voltage range

250~450VDC



Output rated voltage

13.8VDC

Adjustable

Rated output current

145A



Auxiliary power VCC

9~18VDC

VCC

Efficiency

95%

Rated voltage

Output voltage ripple

500mVPK-PK



Output voltage accuracy

±1%



Wake-up method

CAN 、 KL15 、 High Voltage



Communication method

CAN-BUS



Quiescent Current

≦2mA

Consume battery

current in sleep/stop state



Protection characteristics

Input OVP/UVP, output OVP/UVP,OTP, input reverse protection, output

short circuit protection, OCP, OTP



EMC characteristics

GB/T 18655-2010

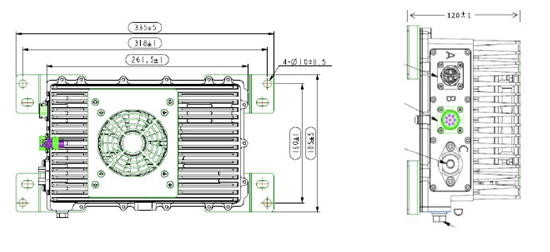

Dimensions

262x180x120mm



Cooling System

Fan cooling



Protection Level

IP67



Weight

≦3KG





Structural parameters


Connector model

Position

Socket model

Function

Brand

Plug model

A

RT00122PN03

DC Input

Amphenol

RT06122SNHEC03

B

RT00128PN03

Signal Control

Amphenol

RT06128SNHEC03

C

GH01-F200-1NNB-T21

Input Positive

Guoweitong

M8 Screw

D

M8 Bolt

Input Negative

\

M8 Screw
