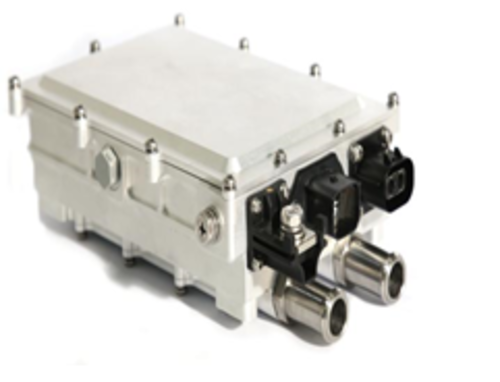

Feature
●Output Power：2.5KW
●Input Voltage：250~450VDC
●Output Voltage：13.8VDC
●Dimensions：298x172x86mm
●Cooling System：Liquid
●IP Rating：IP67
●Communication Method：CAN-BUS
●Enclosure: Aluminum alloy made
●Software: Digital software design
Specification
| Description | Technical specifications | Remark | |
| Operating temperature | -40~85℃ | 85~100℃，Can be derated to 40% of work | |
| Rated output power | 2.5KW | ||
| Input voltage range | 250-450VDC/400-750VDC | Optional | |
| Output rated voltage | 13.8VDC | Adjustable | |
| Rated output current | 181A | ||
| Auxiliary power VCC | 9-18VDC | ||
| Efficiency | ≥95% | ted voltage Full load | |
| Output voltage ripple | ≤500mVPK-PK | ||
| Protection characteristics | Input over-voltage, output over-voltage, input anti-reverse connection, output over-current and short-circuit protection, over-temperature self-recovery | ||
| Over temperature protection | The bottom plate temperature reaches 85 °C and starts derating output. The temperature exceeds 100 °C, shutting down; the temperature is lower than 95 °C, which can be self-recovery. | ||
| Dielectric strength | Input to output | 2500VDC/1min 1mA max | |
| Input to the outer casing | 2500VDC/1min 1mA max | ||
| Insulation resistance | Input to output | ≥20MΩ | |
| nput to the outer casing | ≥20MΩ | ||
| Battery compatibility | Radiation emission | GB/T 18655-2010 Class 3 | |
| Conducted emission | GB/T 18655-2010 Class 3 | ||
| Static immunity | GB/T 19951-2005 | Air discharge：15KV，Contact discharge 8KV | |
| Radiation immunity | GB/T 18655-2010 Class 3 | ||
| High current injection | GB/T 17619-1998 | ||
| Fast burst immunity | GB/T 17626.4-2008 1KV | ||
Structural parameters
