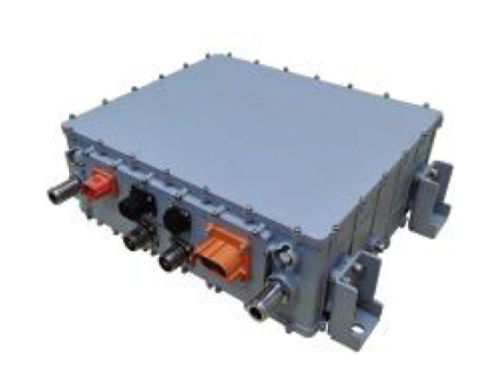

Download: Model No_ATC20K-220S380-W Specification
Features
● Output Power：20KW
● Input Voltage：85~265VAC
● Output Voltage：200~450VDC
● Dimensions：460x401x164mm
● Cooling System：Liquid
● Protection Level：IP67
● Communication Method：CAN
● Full digital software design, redundant protection
Specification
| Description | Technical Specification | Remark | |||||||||||||
| Operating Temperature | -40~85℃ | Coolant inlet temperature | |||||||||||||
| Rated Output Power | 20KW | ||||||||||||||
| Input Voltage Range | 85~265VAC | ||||||||||||||
| Rated Output Voltage | 200~450VDC | ||||||||||||||
| Rated Output Current | 60A | ||||||||||||||
| Auxiliary Voltage Range | 9~32VDC | VCC | |||||||||||||
| Efficiency | ≥94% | Rated voltage | |||||||||||||
| Voltage Accuracy | ±1% | ||||||||||||||
| Current Accuracy | ±3% | ||||||||||||||
| Low Voltage Wakeup | 200mA max (wakeup signal) | Wakeup BMS/VCU, VCC followed | |||||||||||||
| Wakeup Method | AC, PP/CP, EN(hardwire) | Support reservation charging | |||||||||||||
| Communication Method | CAN-BUS | ||||||||||||||
| Quiescent Current | ≤2mA | Battery current will be consumed in sleep/standby mode | |||||||||||||
| Protection Characteristics | Input OVP, UVP, output OVP, UVP, OTP, OCP, output short circuit protection, communication fault protection | ||||||||||||||
| EMC | GB/T 18387-2008, EN 55022 | ||||||||||||||
