13KW OBC Liquid System  |Products|Chargers(OBC)

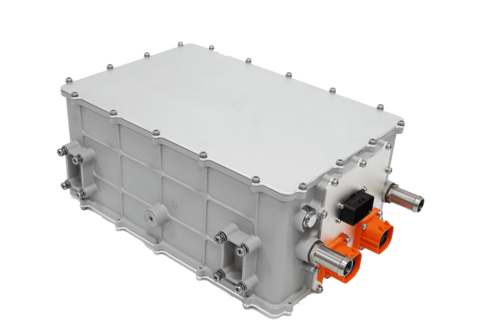

13KW OBC Liquid System


Model No.: ATC13K-220S640-W

Output Power:13KW

Input Voltage:85~265VAC

Output Voltage:450~750VDC

Output Current:24A

Efficiency:94%

Code 13KW_OBC_Liquid






Download:13KW OBC Liquid System
 Specification

Download:13KW OBC Liquid System Specification 3D Drawing
Features
● Output Power:13KW
● Input Voltage:85~265VAC
● Output Voltage:450~750
VDC
● Dimensions:370x252x158mm
● Cooling System:Liquid
● IP Rating:IP67
● Communication:CAN-BUS
● Enclosure: Aluminum alloy made
● Software: Digital software design


Series Specification
Item Part Name Model Name Power (W) Input Voltage (VAC) Output Voltage (VDC) Output Current (A) Efficiency Size (mm) Cooling System Weight (Kg)
1 13KW OBC ATC13K-220S380-W 13000 85-265 200~450 40 94% 370x252x158 Liquid 16
2 ATC13K-220S540-W 400~650 28
3 ATC13K-220S640-W 450~750 24


Specification


Specification

Remark

Rated Output Power

13KW



Input voltage range

85~265VAC



Output voltage range

450~750VDC



Maximum output current

24A



Auxiliary power supply

9-32VDC

VCC

Efficiency

≥94%

@nominal voltage

Voltage accuracy

±1%



Current accuracy

±3%



Low voltage wake up

12/24Vdc@200mAmax (WAKE_UP signal)

Wake up BMS/VCU

Wake up method

AC/PP/CP/VCU_EN

Support appointment charging

Communication method

CAN-BUS



Static Current

≦2mA

Sleep mode/ consume batter current at stop status

Protection

Input OVP, UVP, output OVP, UVP, OTP, OCP, output short circuit protection, communication fault protection



EMC characteristics

GB/T 18387-2008, EN 55022



Operating temperature

-40-85℃



Dimensions

370x252x158mm



IP Rating

IP67



Cooling method

Liquid, flow rate≧ 10L/min



Weight

≦16KG
