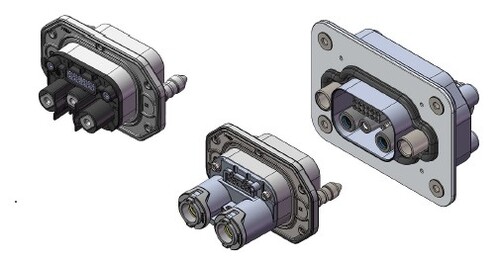

Download: 12PIN Heavy Truck Battery Swap Connector
Model No.: PFSC-JXA-BS1270(1295)(1250)(1295)/PFSC-JXA-CP1270(1295)(1250)(1295)
Current Rating: 250~ 350A
Voltage Rating: 1000V DC
Shield: Option
HVIL: Option
Temperature: -40°C ~+125°C
1. This series of products is mainly used in electric vehicles and energy storage fields to provide stable power and signal transmission between devices.；
2.The shell material of this series of products is die-cast aluminum alloy, which meets the requirements of flame retardancy, RoHS and high temperature resistance. Compared with the same type of battery swap connectors, it has the characteristics of small size and more PINs；
3.The vehicle-side of this series of products can achieve floating of ±5mm in X and Y directions and -10mm in Z direction；
4.The wiring range of this series of products is 50mm²～95mm², and the rated working current is 200A～350A, which meets the different electrical parameter requirements of customers；
5.This series can also be made into cable assemblies by our company according to customer requirements for easy use；
6.This series can be equipped with shielding and high-voltage interlock functions。
