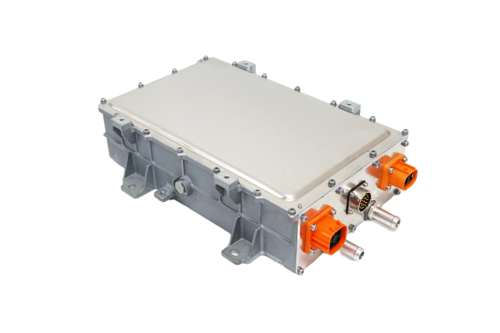

10KW OBC Liquid System


Model No.:ATC10K-220S750-W

Power:10KW

Input Voltage:85~265VAC

Output Voltage:500~850VDC

Output Current:16A

Efficiency:94%

Code 10KW_OBC_Liquid





Download:10KW OBC Liquid System
 Specification


Download:10KW OBC Liquid System 3D Drawing

Features
● Output Power:10KW
● Input Voltage:85~265VAC
● Output Voltage:500~850VDC
● Dimensions:369x238x98mm
● Weight :≦10.5KG
● Cooling System:Liquid
● Communication:CAN
● Enclosure: Aluminum alloy made
● Software: Digital software design
● Online Upgrade & Fault Diagnosis: Supported

Specification

Description Technical Specification Remark
Operating Temperature -40~85℃ Coolant inlet temperature
Rated Output Power 10KW
Input Voltage Range 85~265VAC
Rated Output Voltage 500~850VDC
Rated Output Current 16A
Auxiliary Voltage Range 9~32VDC  VCC
Efficiency ≥94% Rated voltage
Voltage Accuracy ±1%
Current Accuracy ±3%
Low Voltage Wakeup 200mA max (wakeup signal) Wakeup BMS/VCU, VCC followed
Wakeup Method AC, PP/CP, EN(hardwire) Support reservation charging
Communication Method CAN-BUS
Quiescent Current ≤2mA Battery current will be consumed in sleep/standby mode
Protection Characteristics Input OVP, UVP, output OVP, UVP, OTP, OCP, output short circuit prote-ction, communication fault protection
EMC GB/T 18387-2008, EN 55022

Structural Parameters
