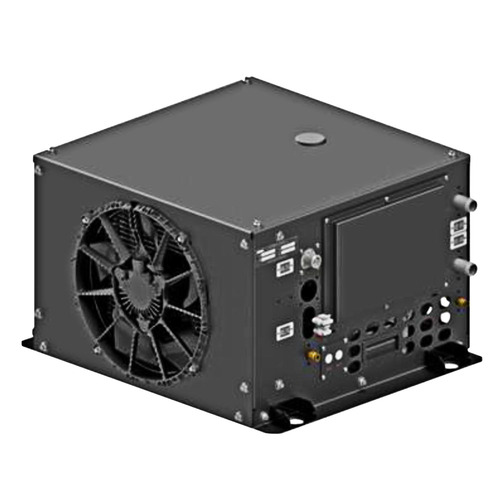

Battery Thermal Management System
Model No. : ARTJHY-TMS-LR-4
Rated high voltage : DC 450V-720V
Rated low voltage : DC 24 V
Compressor rated power : 1800W
Fan rated power : 130 W(single)
Maximum air volume of the fan : 1200m³/h(single)
Code TMS-LR
Download: ARTJHY-TMS-LR-4.pdf
Product Specifications
|
Items |
Specifications |
|
|
1 |
Model |
TJHY-TMS-LR-4 |
|
2 |
Rated cooling capacity |
1~4KW Variable frequency adjustable |
|
3 |
Rated heat capacity |
0~5 KW Adjustable (optional) |
|
4 |
Condensing air volume |
2000 m³/h |
|
5 |
Water pump |
DC24V,180W |
|
|
Circulating water volume |
20 L/min（head >10m） |
|
|
Liquid temperature range |
10℃～35℃ |
|
|
Compressor |
DC200-720V |
|
6 |
Refrigerant type |
R134a |
|
7 |
Crew protection |
IP66 (high pressure IP67) |
|
8 |
Nozzle specifications |
Φ25 |
|
9 |
Coolant Type |
50% Ethylene Glycol |
|
10 |
Communication |
Can |
|
11 |
Use ambient temperature |
-30℃～50℃ |
|
12 |
Use liquid type |
Antifreeze (CAN be changed by customer's demand) |
|
13 |
Power Type |
DC power supply |
