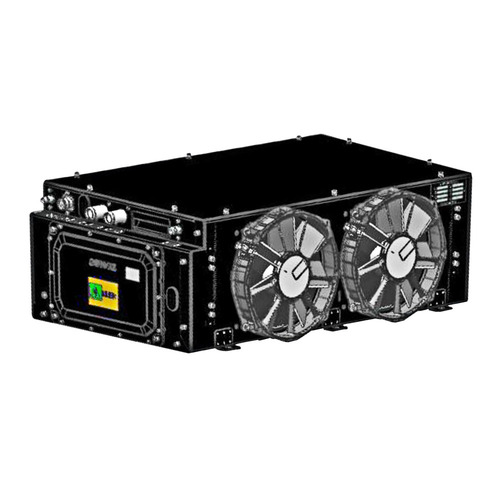

Battery Thermal Management System


Model No. : ARTJHY-TMS-8

Rated high voltage : DC 450V-720V

Rated low voltage : DC 24 V

Compressor rated power : 1800W

Fan rated power : 130 W(single)

Maximum air volume of the fan : 1200m³/h(single)

Code TMS-8





Download:  ARTJHY-TMS-8.pdf


Product  Specifications

Items Specifications
1 Model ARTJHY-TMS-8
2 Weight ≤45Kg
3 Dimensions 865*543*290
4 Rated cooling capacity 8KW
5 Rated condition Outlet water temperature is 20°C,
Ambient temperature 38℃
6 Refrigerant type R134a
7 Crew protection IP66
(high pressure IP67)
8 Nozzle specifications Φ25
9 Coolant Type 50% Ethylene Glycol
10 Communication Can
11 Use ambient temperature " -30 - 50
12 Use liquid type Antifreeze (CAN be changed by customer’s demand)
13 Power Type DC power supply
