Manual Service Disconnector(MSD7)


■   Fuse current: Voltage 750V.DC 200A - 400A ; Voltage 500V.DC 500A ■   Current Rating : 250A

Code HV_CONNECTOR_MSD7

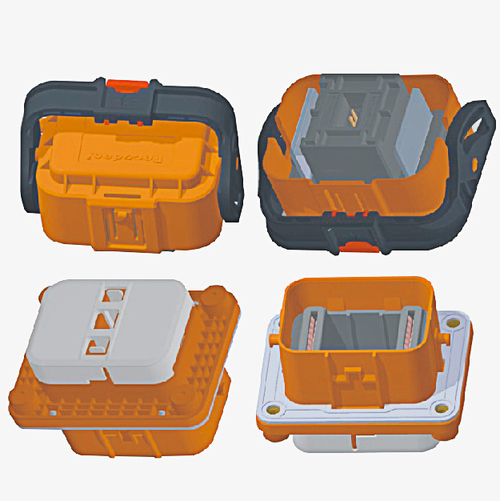

Manual Service Disconnector(MSD7)

Specification


2D Drawing_REAR MOUNT SOCKET_RC-MSD7-Z-H-A

2D Drawing_PLUG_RC-MSD7-315A750V-H-A



Download: Manual Service Disconnector(MSD7) Plug+Socket(Rear)
 Voltage 750V.DC 200A - 400A ; Voltage 500V.DC 500A



Download: Manual Service Disconnector(MSD7) Plug+Socket(Front)


Features / Application :
■    MSD7 provides stable high voltage power transmission for EV/HEV systems. The fuses in MSD7 provides overcurrent and short-ci「cuit protection.
■    Breaking structure and fuses are highly integrated inside which saves installation space and convenient for repair and maintenance.
■    MSD7 is connector comprising of plug and jack. The jack is joint with cable. Back installation of socket for option.
■    Current rating 250A and 300A in 30 mins, catch one pair of HVI L
■    The connectors have rotatable locking handle and secondary lock-unlock structure, it's convenient to operate and save strength.
