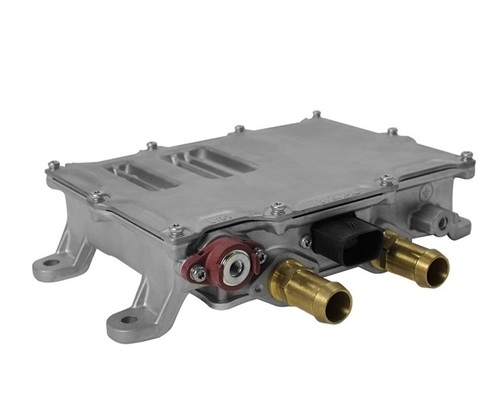

2KW DC/DC Converter Liquid System


Model No.:ATD2K-32012-W

Output Power:2KW

Input Voltage:240~420VDC

Output Current:143A

Output Voltage:14VDC

Dimensions:263x227x59.4mm

Protection Level:IP67

Efficiency:94%

Code ATD2K-32012-W





Download:2KW DC/DC Converter Liquid System Specification


Features

●Output Power:2KW
●Input Voltage:240~420VDC
●Output rated voltage:14VDC
●Output Currant:143A

●Dimensions:263x227x59.4mm
●Cooling System:Liquid
●Communication Method:CAN
●Weight: ≦3KG


Series Specification

Item Part Name Model Name Power (W) Input Voltage (VDC) Output Voltage (VDC) Output Current (A) Efficiency Size (mm) Cooling System Weight (Kg) Certificate
1 2KW DC-DC
CONVERTER
ATD2K-32012-W 2000 240-420 14V 143A 94% 263x227x59.4 Liquid 3.0 CE

Specification

Item

Min

Typ

Max

Unit

Remark

DC/DC Parameter

1Input

Input voltage range

240

-

420

Vdc



2Output

Output voltage range

13.6



14.0

Vdc



Nominal output current

-

143

-

A



Peak output current

-

172

-

A

1.2 times of rated output current

Output power

-

2000

-

W



Output peak power

-

-

2400

W

Working time≤6 minutes

DC efficiency

93

-

-

%

Rated input voltage, load more than 30%

Output voltage rising

time





300

mS

Time for output voltage from 10% to 90%

Output static current

-

-

1

mA

Output voltage is 14V

3Protection parameters

Input over voltage

protection point

425



435

Vdc

Shut off output

Input voltage recovery

point

420



430

Vdc



Input low voltage

protection point

225



235

Vdc

Shut off output

Input low voltage

recovery point

230



240

Vdc



Output over voltage

protection level

15



16

Vdc

15-16VDCturn off15VDC automatic

recovery

Output low voltage

protection point

6



7

Vdc

6-7VDCturn off 9VDC automatic recovery





Over temperature protection





95





DC/DC internal CPU inspect DC/DC internal temperaturewhen reach to this point, power goes down and derating output





110





DC/DC internal CPU inspect DC/DC internal temperaturewhen reach to this point, DC/DC shut off

Output over current

protection

>178

A

This value is for the hardware, it can be

adjusted by the firmware


Environmental conditions


No.

Item

Technical Indicators

Unit

Remark

1

Operation

Temperature

-4085

Coolant no more than

65

2

Storage

Temperature

-55100

Without power supply

3

Relative Humidity

595

%RH

No condensation, no

frosting

4

Protection Level

IP67





5

Cooling Way

Liquid cooling





6

Vibration Level

Meet GB/T24347-2009





7

Noisy Level

65

dB

Meet GB/T24347-2009

8

Salt spray Level

Meet QC/T2423.17-2011





9

Altitude

3000

m

GB/T16935.1-2008
