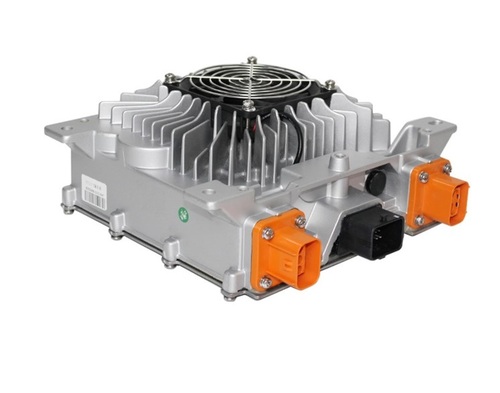

Features
● Input Voltage：85~265VAC
● Output Voltage：50~107、80~161、100~215、200~450VDC
● Dimensions：264.5x252x100、244x229.6x96mm
● Cooling System：Fan
● Communication Method：CAN-BUS
● Weight: ≤4.8KG
Series Specification
| Item | Part Name | Model Name | Power (W) | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (A) | Efficiency | Size (mm) | Cooling System | Weight (Kg) | Certificate |
| 1 | 3.3KW OBC |
ATC3K3-7240-A | 3300 | 85-265 | 50~107 | 40 | ≥94% | 264.5x252x100 | Fan | 4.8 | CE |
| 2 | ATC3K3-10832-A | 80~161 | 32 | ||||||||
| 3 | ATC3K3-14423-A | 100~215 | 23 | 244x229.6x96 | |||||||
| 4 | ATC3K3-31210-A | 200~450 | 10 |
Environmental Specification
Working environmental temperature
|
Area |
Lowest Temperature |
Highest Temperature |
|
Global |
-40℃ |
60℃ |
Storage environmental temperature
|
Area |
Lowest Temperature |
Highest Temperature |
|
Global |
-40℃ |
105℃ |
● Humidity：relative humidity 5%~95%，no condensation
● Altitude：≤3000m
● Working noisy：max when working ≤65dB，meet China standard QTC 895-2011
Output
|
Nominal Voltage Platform |
72V |
108V |
144V |
312V |
|
|
Output |
Output voltage range |
50-107V |
80-161V |
100-215V |
200-450V |
|
Max output current |
40A |
32A |
23A |
10A |
|
|
Output power |
3300W@220VAC；1650W@110VAC |
||||
|
Output way |
CV/CC |
||||
|
Efficiency |
≥94% |
||||
|
CV accuracy |
±1% |
||||
|
CC accuracy |
±2% |
||||
|
Ripple voltage coefficient |
±5% |
||||
|
Output voltage rising time |
＜5S，overshoot＜10% |
||||
|
Shut off response time |
Current decreased below 10% in 300ms, and decreased to 0A in 500ms |
||||
