19.8KW On-board Charger  |Products|Chargers(OBC)

19.8KW On-board Charger

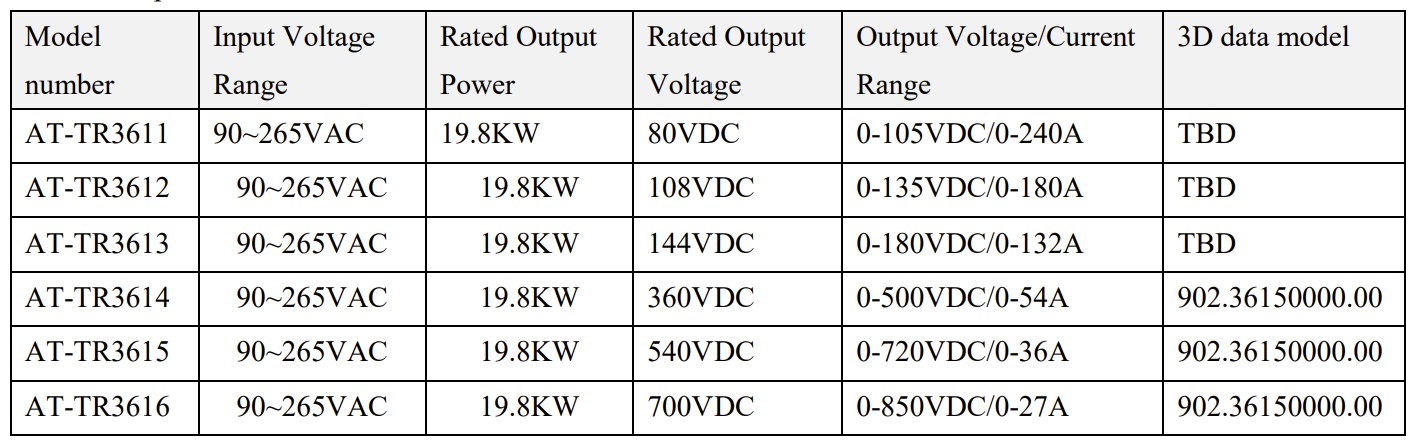

Model No.:AT-TR3610 Series

Input Voltage Range:90~265VAC

Rated Input Voltage:220VAC

Rated Output Power:19.8KW

Code AT-TR3610_Series

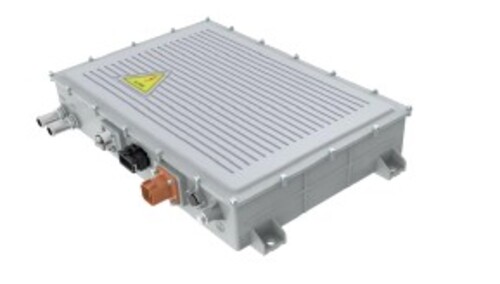

19.8KW On-board Charger
Model No. AT-TR3610 Series


1.Product Introduction
AT-TR3610 series vehicle on-board-charger is designed for new lithium electric logistics vehicles, buses, construction
machinery and other new energy models research and development of a high-power dense and high-efficiency
charger, using modular, standardized, universal ideas to design and develop.
The charger supports three-phase AC input, and the DC output voltage is adjustable in the full range.
The charger is designed with full digital control technology, which has flexible and intelligent control, good protection characteristics and strong system robustness. Its own microprocessor communicates with the monitoring unit, and the parameters in the machine CAN be set or adjusted by the upper monitoring unit through the CAN interface.
It has multiple protection functions such as input over-voltage protection, output over-current protection, output over-voltage protection, output short-circuit protection, and over-temperature protection.
