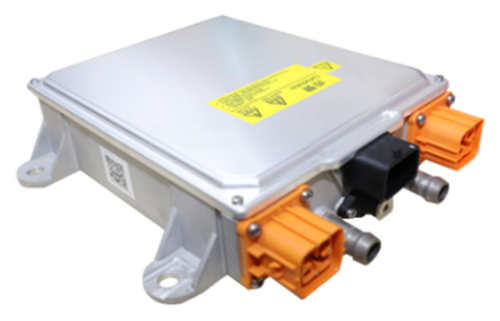

Combo 6.6KW OBC+2.5KW DC/DC Converter


Model No.:AR2K5D6K6B-270S400L-I

Power:6.6 KW OBC+2.5KW DC/DC

Input Voltage:

OBC:85~265VAC DCDC:270~450VDC

Output Voltage:

OBC:270~450VAC DCDC: 9~16VDC

Output Current:

OBC:22A DCDC:180A

Efficiency:≧92%

Code AR2K5D6K6B





Download : Model No_AR2K5D6K6B-270S400L-I Specification

Download : Model No_AR2K5D6K6B-270S400L-I 3D Drawing



Features
● Output Power:
OBC:6.6KW
DCDC:2.5KW
● Input Voltage:
OBC:85~265VAC
DCDC:270~450VDC
● Output Voltage:
OBC:270~450VDC
DCDC:9~16VDC
● Output Current:
OBC:22A
DCDC:180A
● Dimensions:279x202x68mm
● Cooling System:Liquid
● Communication:CAN 2.0B
● Weight :≦5.5KG


Environmental Specification
Working environmental temperature

Area

Lowest Temperature

Highest Temperature

Global

-40℃

85℃


Storage environmental temperature

Area

Lowest Temperature

Highest Temperature

Global

-40℃

105℃



●Humidity:relative humidity 5%~95%,no condensation

●Altitude:≤3000m

●Working noisy:max when working ≤65dB,meet China standard QTC 895-2011


Electrical Characteristics

Description Technical Specification
OBC Charging Mode
Rated Output Power 6.6KW
Input Voltage Range 85~265VAC
Input Current 32A Max
Power Factor 0.98@rated input, output ≥half load
Output Voltage Range 270~450VDC
Max Output Current 22A
Efficiency ≥92% @rated input and output
Output Voltage Accuracy ±1%
Output Current Accuracy ≤±3%@>10A;≤±0.3A @<10A
Output Voltage Ripple Coefficient  ≤±5%
DC/DC Mode
Input Voltage Range 270~450VDC
Rated Input Voltage 350VDC
Input Current 12A
Efficiency ≥92% @rated input and output
Output Voltage Range 9~16VDC
Rated Output Voltage 14VDC
Output Current  180A
Rated Power 2.5KW
Under Charging / Inverting State DCDC Max Output Power  2KW
Output Voltage Accuracy ≤±1%
Output Voltage Ripple ≤500mVpp@20MHz
Output Voltage overshoot ≤5% Vout


Structural Parameters
