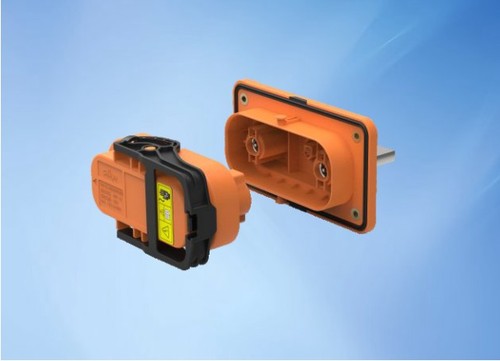

Manual Service Disconnect-MSD600


Max voltage : 500V/1000V

Max current : 400A

Temperature range : -40℃ to +125℃

Plugging Cycle : More than 500 times

Screw : M8

Sealing protection : IP67, IP6K9K

Code AR-MSD600




MSD600 Datasheet





Application :

● Power battery pack

Description :

● Flange sealing assembly
● Fuse with different level current available
​​​​​​​● Compact space saving, light weight
​​​​​​​● HVIL embedded

Performance :

● Max voltage : 500V/1000V
● Max current : 400A
● Temperature range : -40℃ to +125℃
● Plugging Cycle : More than 500 times
​​​​​​​● Screw : M8
● Sealing protection : IP67, IP6K9K

Part Number Information


No Fuse Current Plug Socket

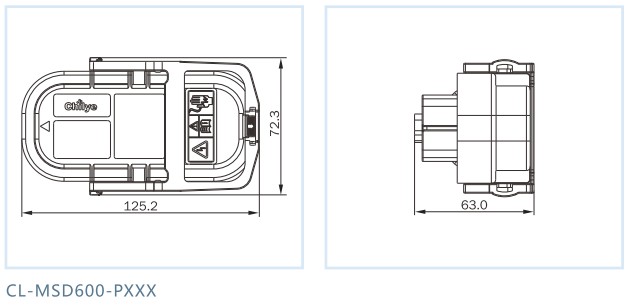

1 Short connector CL-MSD600-P000

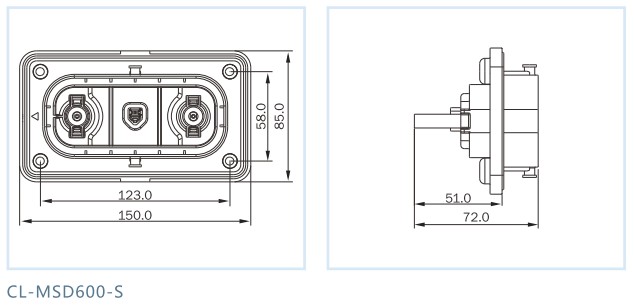

CL-MSD600-S


2 200 CL-MSD600-P200
3 250 CL-MSD600-P250
4 300 CL-MSD600-P300
5 350 CL-MSD600-P350
6 400 CL-MSD600-P400
