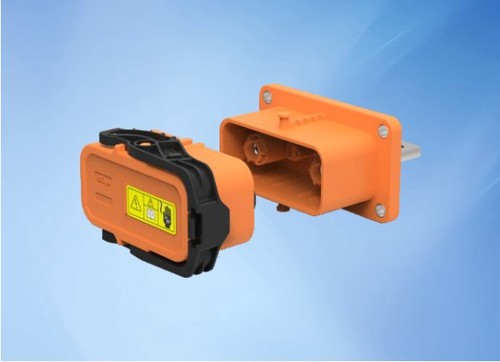

Manual Service Disconnect-MSD500


Rated voltage : 500V

Rated current : up to 300A

Temperature range : -40℃ to +125℃

Plugging Cycle : More than 500 times

Screw : M6

Sealing protection : IP67, IP6K9K

Electrical protection : IP2XB

Code AR-MSD500




MSD500 Datasheet





Application :

● Power battery pack

Description :

● Sealing device by sealing ring
● High speed fuse with various ratings
● Different error proof per different fuse rating
​​​​​​​● Finger touch safe
​​​​​​​● Light weight, compact size
​​​​​​​● HVIL : two internal connection

Performance :

● Rated voltage : 500V
● Rated current : up to 300A
● Temperature range : -40℃ to +125℃
● Plugging Cycle : More than 500 times
​​​​​​​● Screw : M6
● Sealing protection : IP67, IP6K9K
● Electrical protection : IP2XB

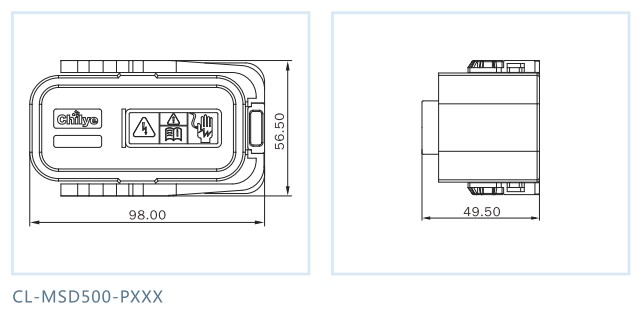

Part Number Information


No Fuse Current Plug Socket
1 100A CL-MSD500-P100
CL-MSD500-S

2 200A CL-MSD500-P200
3 250A CL-MSD500-P250
4 300A CL-MSD500-P300
​​​​​​​
