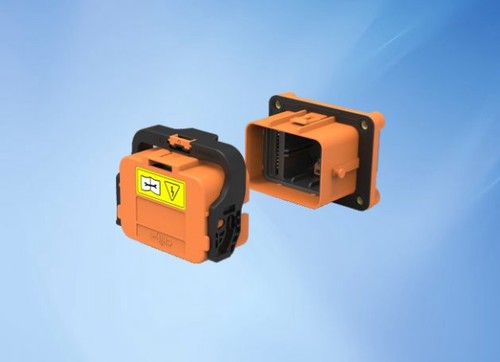

Manual Service Disconnect-Mini MSD
Max voltage : 700V
Max current : 400A
Temperature range : -40℃ to +125℃
Plugging Cycle : More than 500 times
Screw : M6
Sealing protection : IP67, IP6K9K
Electrical protection : IP2XB
Code AR-MINI_MSD
Mini MSD Datasheet

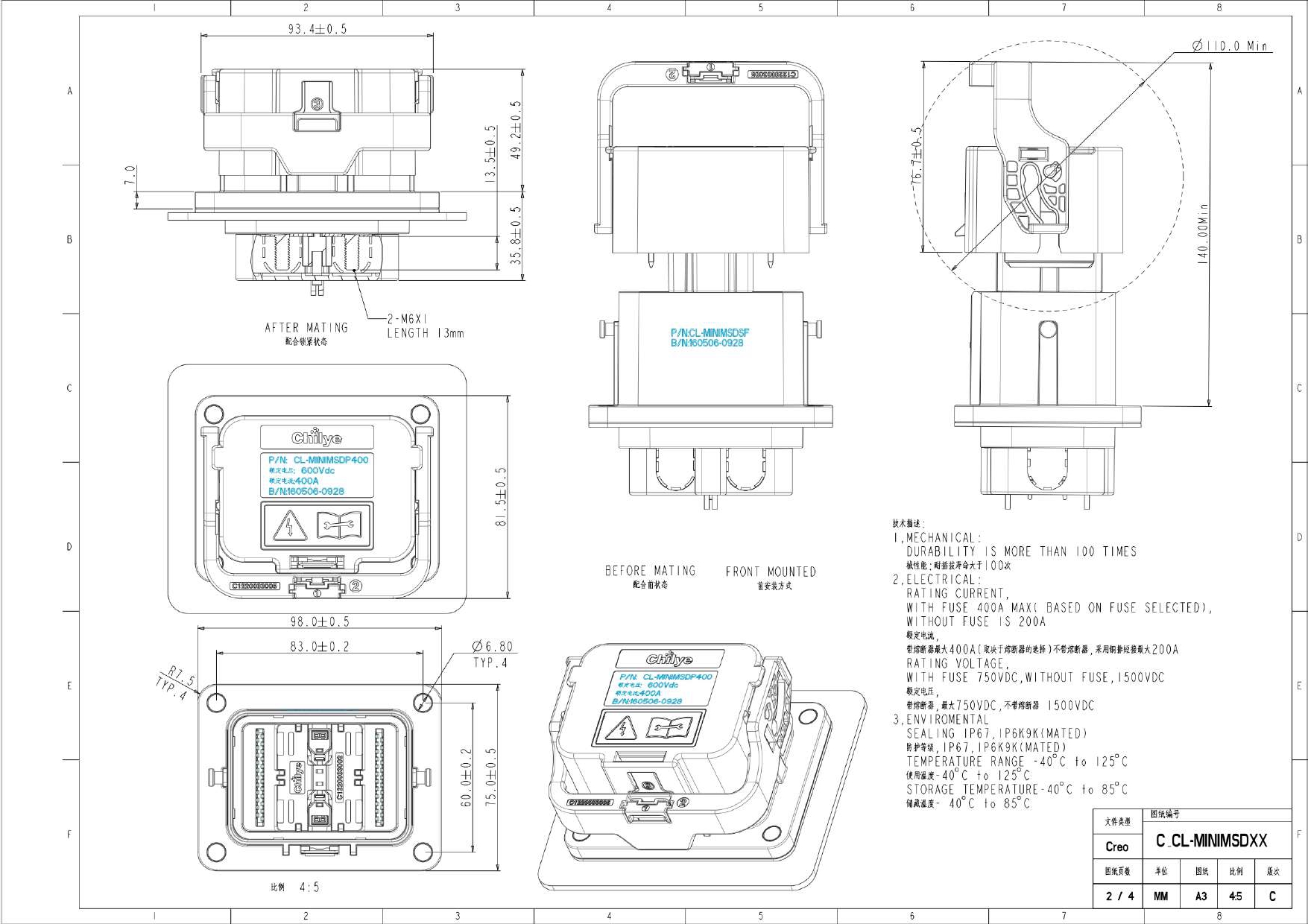

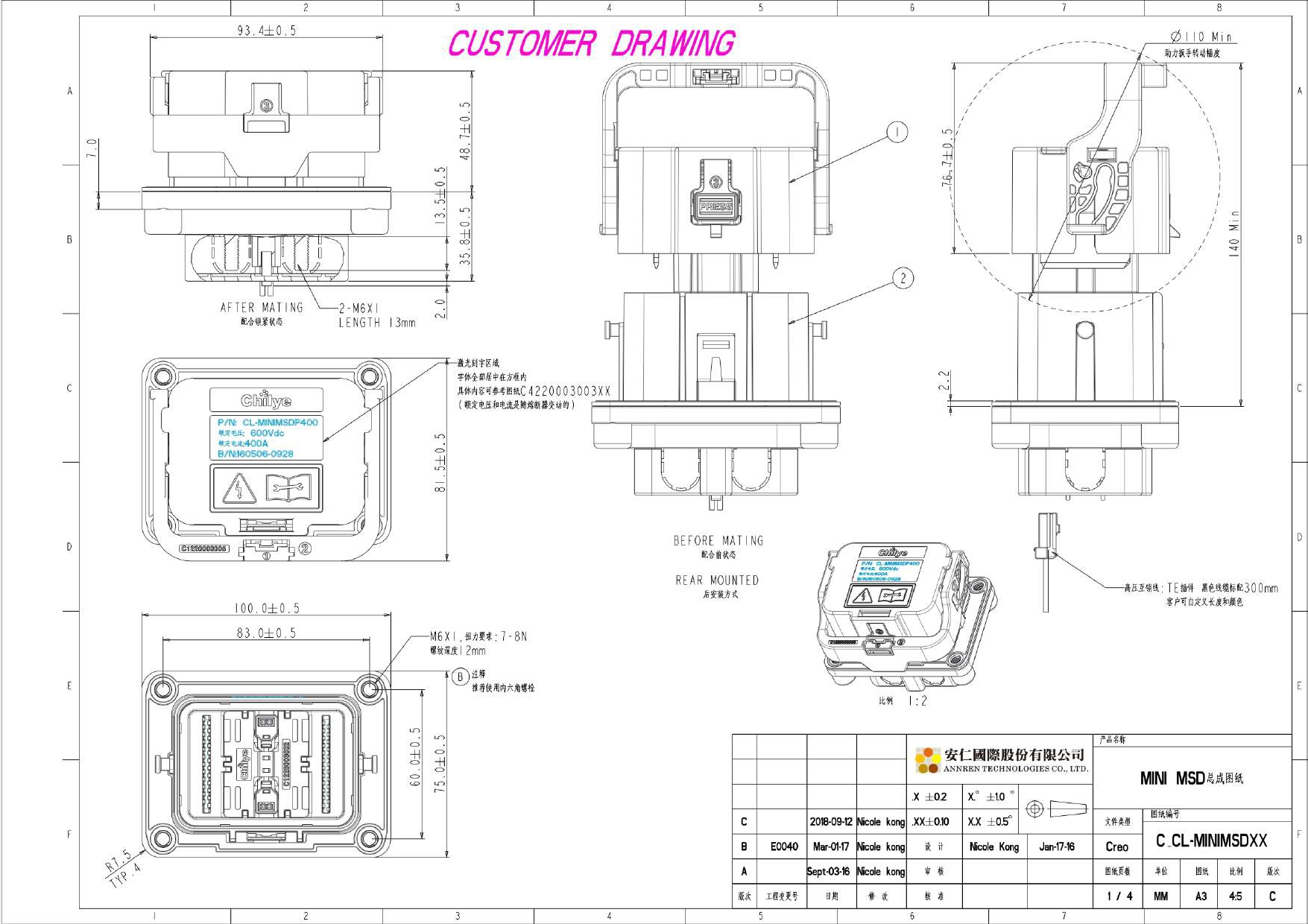

Mini MSD 總成圖紙
Application :
● Power battery pack
Description :

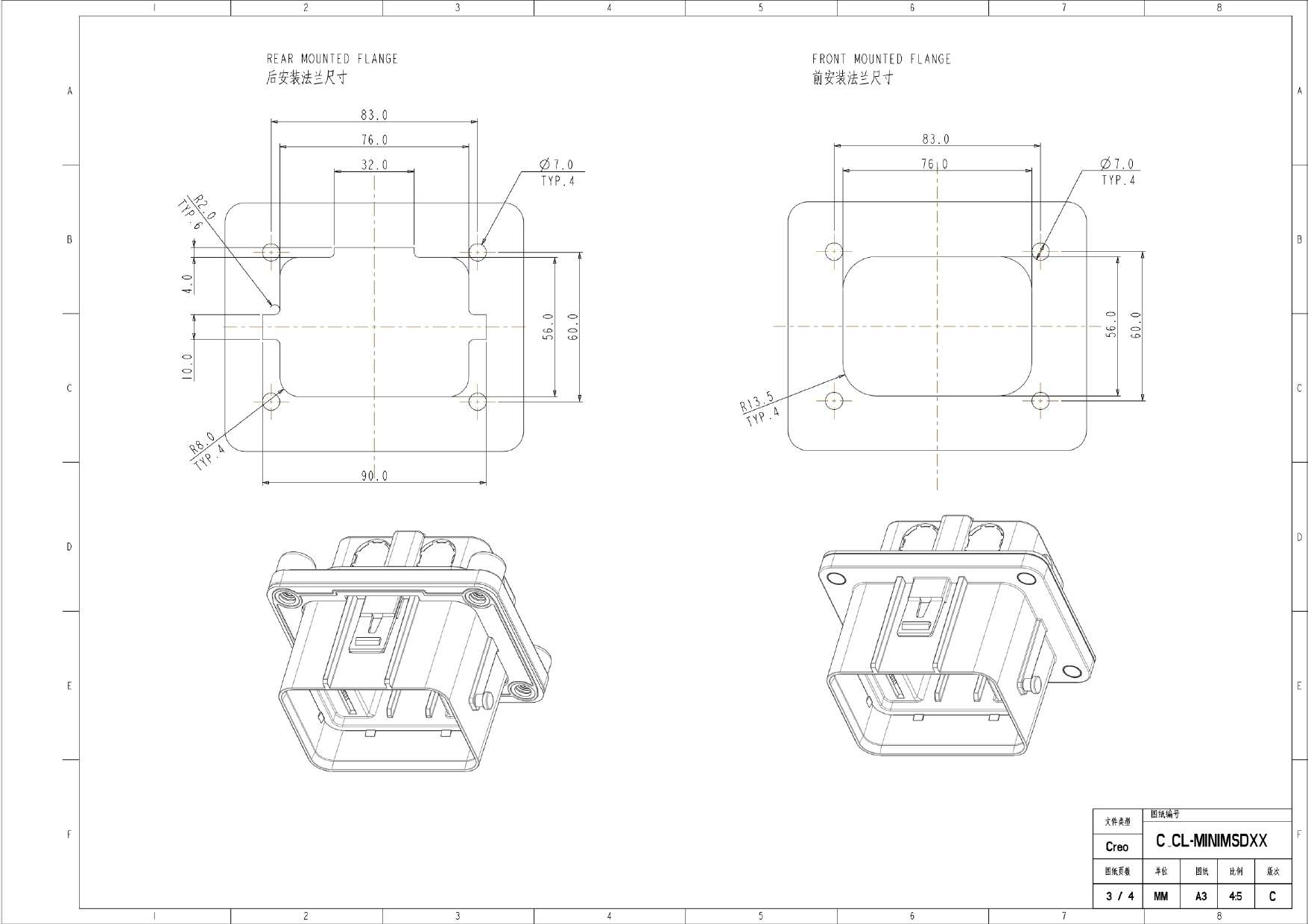

● Flange sealing, can be assembled at the front or at the rear
● Two stage unlocking design
● Fuse with different level current available
● Finger touching safe
● Light weight, compact size
● Two alternative HVIL circuit available
● Cable range: Power circuit: 25mm2 to 50mm2, HVIL circuit: 0.5mm2
Performance :
With Fuse
● Max voltage : 700V
● Max current : 400A
No Fuse
● Max voltage : 1500V
● Temperature range : -40℃ to +125℃
● Plugging Cycle : More than 500 times
● Screw : M6
● Sealing protection : IP67, IP6K9K
● Electrical protection : IP2XB
Part Number Information
| Error proof keys | Fuse Current | Plug | Head assembly | Rear assembly |

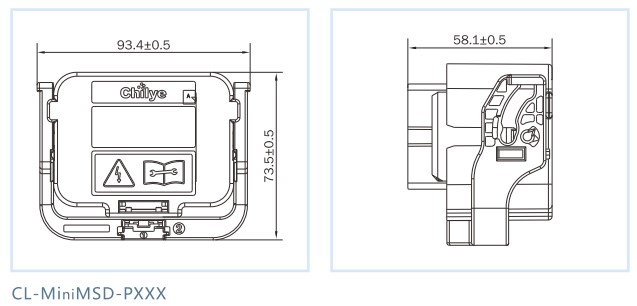

| 1 | Short connector | CL-MiniMSD-P000 | CL-MiniMSD-SF |
CL-MSD700-S |
| 2 | 080 | CL-MiniMSD-P080 | ||
| 3 | 100 | CL-MiniMSD-P100 | ||
| 4 | 125 | CL-MiniMSD-P125 | ||
| 5 | 160 | CL-MiniMSD-P160 | ||
| 6 | 200 | CL-MiniMSD-P200 | ||
| 7 | 250 | CL-MiniMSD-P250 | ||
| 8 | 315 | CL-MiniMSD-P315 | ||
| 9 | 350 | CL-MiniMSD-P350 | ||
| 10 | 400 | CL-MiniMSD-P400 |
SELECTION TABLE BUSSMANN FUSE
| 1 PLUG | 2 RECEPTACLE | PLUG+RECEPTACLE | CURRENT | FUSE 1 | FUSE 2 | FUSE FIRM | REMARK | ||
| PLUG | REAR MOUNTED | FRONT MOUNTED | REAR MOUNTED | FRONT MOUNTED | DC VOLTAGE | DC VOLTAGE | |||

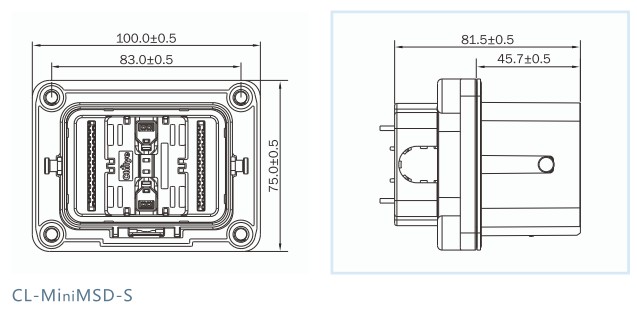

| CL-MINIMSDP000 | CL-MINIMSDS |

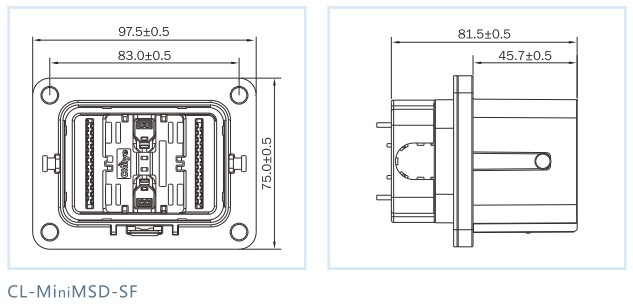

CL-MINIMSDSF |
CL-MINIMSDZ000 | CL-MINIMSDZ000F | NO FUSE | 1500 | 1500 | CHILY | |
| CL-MINIMSDP080 | CL-MINIMSDZ080 | CL-MINIMSDZ080F | 80 | 700 | 750 |
BUSSMANN |
|||
| CL-MINIMSDP100 | CL-MINIMSDZ100 | CL-MINIMSDZ100F | 100 | 700 | |||||
| CL-MINIMSDP125 | CL-MINIMSDZ125 | CL-MINIMSDZ125F | 125 | 700 | |||||
| CL-MINIMSDP160 | CL-MINIMSDZ160 | CL-MINIMSDZ160F | 160 | 700 | |||||
| CL-MINIMSDP200 | CL-MINIMSDZ200 | CL-MINIMSDZ200F | 200 | 700 | |||||
| CL-MINIMSDP250 | CL-MINIMSDZ250 | CL-MINIMSDZ250F | 250 | 700 | |||||
| CL-MINIMSDP315 | CL-MINIMSDZ315 | CL-MINIMSDZ315F | 315 | 700 | |||||
| CL-MINIMSDP350 | CL-MINIMSDZ350 | CL-MINIMSDZ350F | 350 | 600 | |||||
| CL-MINIMSDP400 | CL-MINIMSDZ400 | CL-MINIMSDZ400F | 400 | 600 | |||||
SELECTION TABLE SINO FUSE
| 1 PLUG | 2 RECEPTACLE | PLUG+RECEPTACLE | CURRENT | DC VOLTAG | FUSE FIRM | REMARK | ||
| PLUG | REAR MOUNTED | FRONT MOUNTED | REAR MOUNTED | FRONT MOUNTED | ||||
| CL-MINIMSDP032Z | CL-MINIMSDS |
CL-MINIMSDSF |
CL-MINIMSDZ032ZN | CL-MINIMSDZ032ZF | 32 | 750 |
SINO FUSE |
|
| CL-MINIMSDP040Z | CL-MINIMSDZ040ZN | CL-MINIMSDZ040ZF | 40 | |||||
| CL-MINIMSDP050Z | CL-MINIMSDZ050ZN | CL-MINIMSDZ050ZF | 50 | |||||
| CL-MINIMSDP063Z | CL-MINIMSDZ063ZN | CL-MINIMSDZ063ZF | 63 | |||||
| CL-MINIMSDP080Z | CL-MINIMSDZ080Z | CL-MINIMSDZ080ZF | 80 | |||||
| CL-MINIMSDP100Z | CL-MINIMSDZ100Z | CL-MINIMSDZ100ZF | 100 | |||||
| CL-MINIMSDP125Z | CL-MINIMSDZ125Z | CL-MINIMSDZ125ZF | 125 | |||||
| CL-MINIMSDP160Z | CL-MINIMSDZ160Z | CL-MINIMSDZ160ZF | 160 | |||||
| CL-MINIMSDP200Z | CL-MINIMSDZ200Z | CL-MINIMSDZ200ZF | 200 | |||||
| CL-MINIMSDP250Z | CL-MINIMSDZ250Z | CL-MINIMSDZ250ZF | 250 | |||||
| CL-MINIMSDP315Z | CL-MINIMSDZ315Z | CL-MINIMSDZ315ZF | 315 | |||||
| CL-MINIMSDP350Z | CL-MINIMSDZ350Z | CL-MINIMSDZ350ZF | 350 | |||||
| CL-MINIMSDP400Z | CL-MINIMSDZ400Z | CL-MINIMSDZ400ZF | 400 | |||||
注釋;
1. 表一中FUSE系列一為低電壓，插頭型號和成品型號如表格所示
2. 表一中FUSE系列二為高電壓，須在型號(插頭和成品)後面加上-H，例如; 插頭型號 CL-MINIMSDP400-H，成品型號 CL-MINIMSDZ400-H
3. 表一和表二中熔斷器的廠家不同，選型時先選擇熔繼器再讀取產品料號
1. 表一中FUSE系列一為低電壓，插頭型號和成品型號如表格所示
2. 表一中FUSE系列二為高電壓，須在型號(插頭和成品)後面加上-H，例如; 插頭型號 CL-MINIMSDP400-H，成品型號 CL-MINIMSDZ400-H
3. 表一和表二中熔斷器的廠家不同，選型時先選擇熔繼器再讀取產品料號
