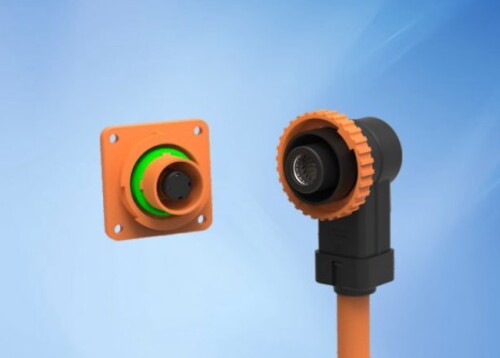

HVP 900 Connector


Model No.:AR-HVP900-11X/AR-HVP900-12X

Rated voltage:800V DC

Rated current:300A(Max)

Temperature range : -40℃ to +125℃

Sealing protection : IP67

Electrical protection : IP2XB

Code AR-HVP900-1XX





Download: HVP 900 1POS CONNECTOR(AR-HVP900-11X & AR-HVP900-12X) Specificaiton





Product application
● Power battery pack, high voltage distribution unit

Description
● The maximum current up to 350A
● Can meet rotate 360 degrees for lay out
● Good seal with waterproof performance
● Easy install design
● Finger proof / touch safe
● Compact size / Light-weight


Performance
● 14mm pin
● Wiring range : 70-95mm2 single core cable
● Mechanical lock : products with thread lock mechanical design,
                                  and does not need to use the specialized tools
● Connection Angle : 90∘
● Rated voltage : 800V
● Rated current : 300A
● Electrical protection : IP2XB
● Temperature range : -40℃ to +125℃
● Protection grade : connect : IP67(outlet) : not connected IP2XB


Part Number Information


Keys Receptacle Right Angle Plug
Red Black Red Black

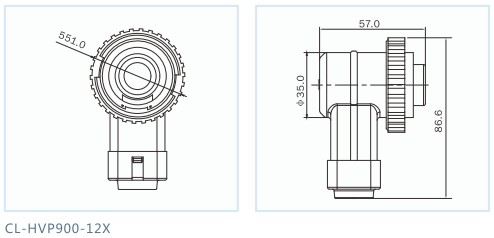

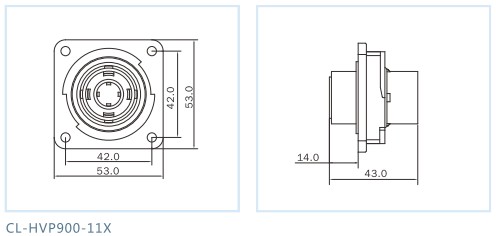

1 CL-HVP900-111 CL-HVP900-112 CL-HVP900-121 CL-HVP900-122
