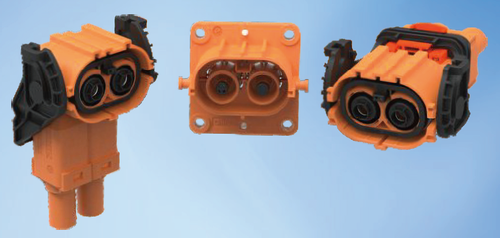

HVC 800 2 POS Connector


Model No.:AR-HVC800-21X/AR-HVC800-23X/AR-HVC800-24X

Rated voltage:1000V DC

Rated current:250A(Max)

Temperature range : -40℃ to +125℃

Sealing protection : IP67, IP6K9K

Electrical protection : IP2XB

Code AR-HVC800-2XX





Download: HVC 800 2POS CONNECTOR(AR-HVC800-21X & AR-HVC800-23X & AR-HVC800-24X) Specificaiton





Reference Standard : LV214, USCAR-2, USCAR-37


Product application
● Power battery, Motor controller, Inverter

Description
● Internal HVIL(use short harness connector for plug end)
● With mechanical blocking
● Finger proof / touch safe
● Linearity and 90° plug design
● Three error-proof design
● Shielding range : 360° shielded from the line to the connector
● Light weight, compact size
● Cable range : 25mm2 to 50mm2 Single core shielded wire


Performance
● 8mm Contact pin
● Rated voltage : 1000V
● Rated cuurent : 250A
● Temperature range : -40℃ to +125℃
● Sealing protection : IP67, IP6K9K
● Electrical protection : IP2XB


Part Number Information

Keys Receptacle Straight Plug Right Angle Plug

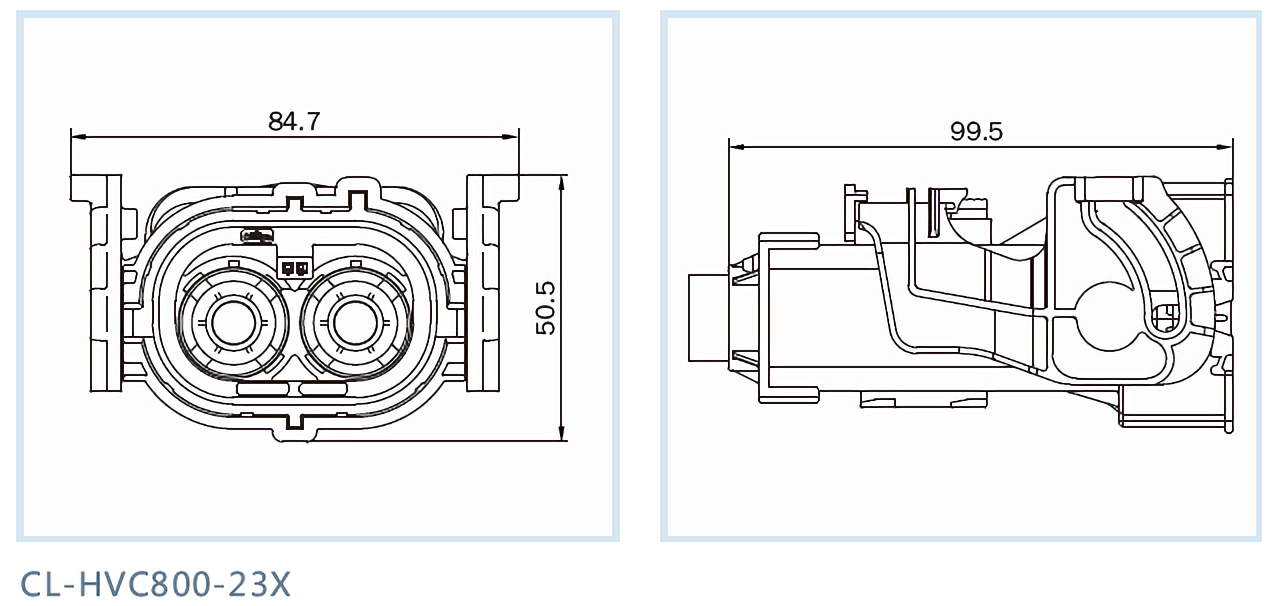

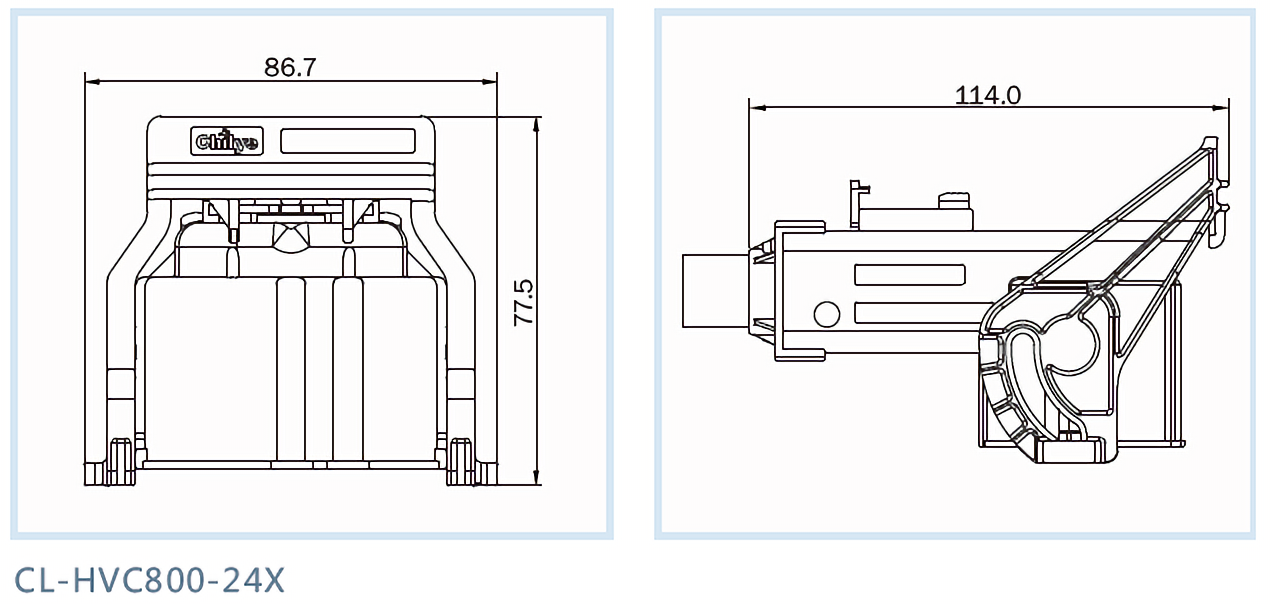

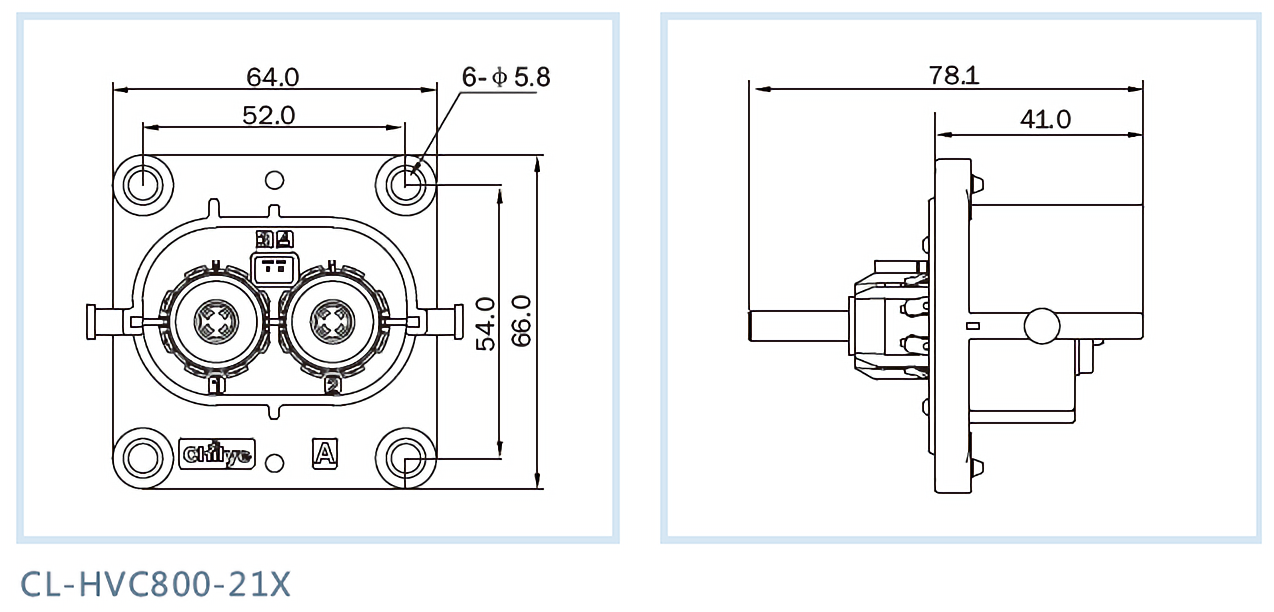

A CL-HVC800-21A CL-HVC800-23A-XX CL-HVC800-24A-XX
B CL-HVC800-21B CL-HVC800-23B-XX CL-HVC800-24B-XX
C CL-HVC800-21C CL-HVC800-23C-XX CL-HVC800-24C-XX
 Note : XX is 25, 35, 50 means 25mm2, 35mm2, 50mm2 wire
