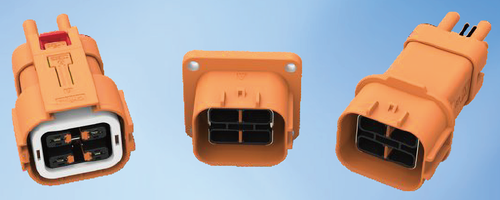

HVC 530 4POS Connector


Model No.:AR-HVC530-41X/AR-HVC530-42X/AR-HVC530-43X

Rated voltage:600V DC

Rated current:40A(Max)

Temperature range : -40℃ to +125℃

Sealing protection : IP67, IP6K9K

Electrical protection : IP2XB

Code AR-HVC530-4XX





Download: HVC 530 4POS CONNECTOR(AR-HVC530-41X & AR-HVC530-42X & AR-HVC530-43X) Specificaiton


Reference Standard : LV214, USCAR-2, USCAR-37


Product application
● Connection system for high voltage units

Description
● Sealed connection system
● HVIL inserted (use short harness connector for plug end)
● Two-stage locking system for HVIL time delay
● Two HV power circuits
● Finger touching safe
● Three error-proof design
● Shielding range : 360° shielded from the line to the connector
● Cable range : power circuit : 2.5mm2 to 6mm2
                            HVIL circuit : 0.5mm2


Performance
● Current capacity : 40A continuous at 85℃
● Voltage : 600V
● Temperature range : -40℃ to +125℃
● Sealing protection : IP67, IP6K9K
● Electrical protection : IP2XB


Part Number Information
Keys Receptacle Straight  Plug Straight  Receptacle

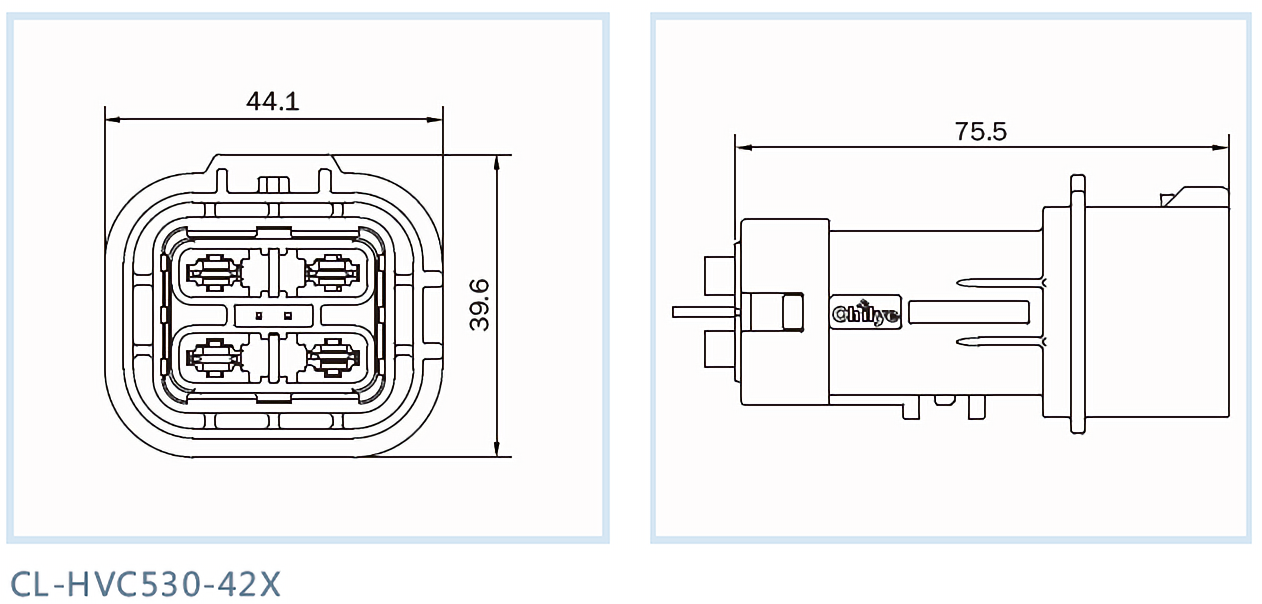

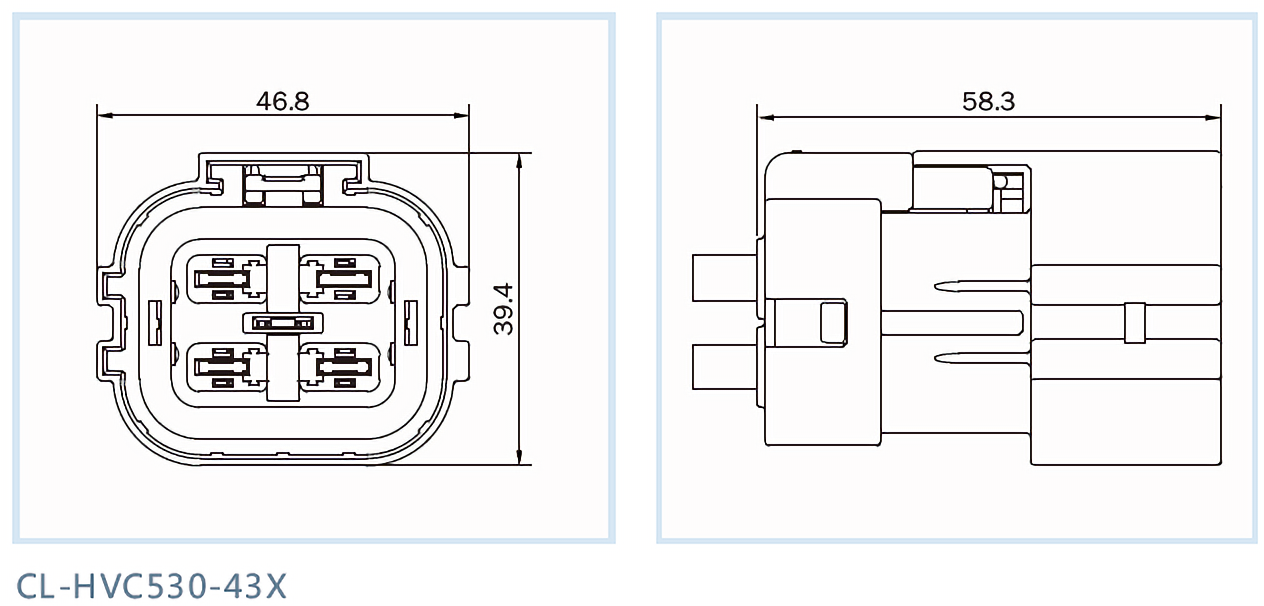

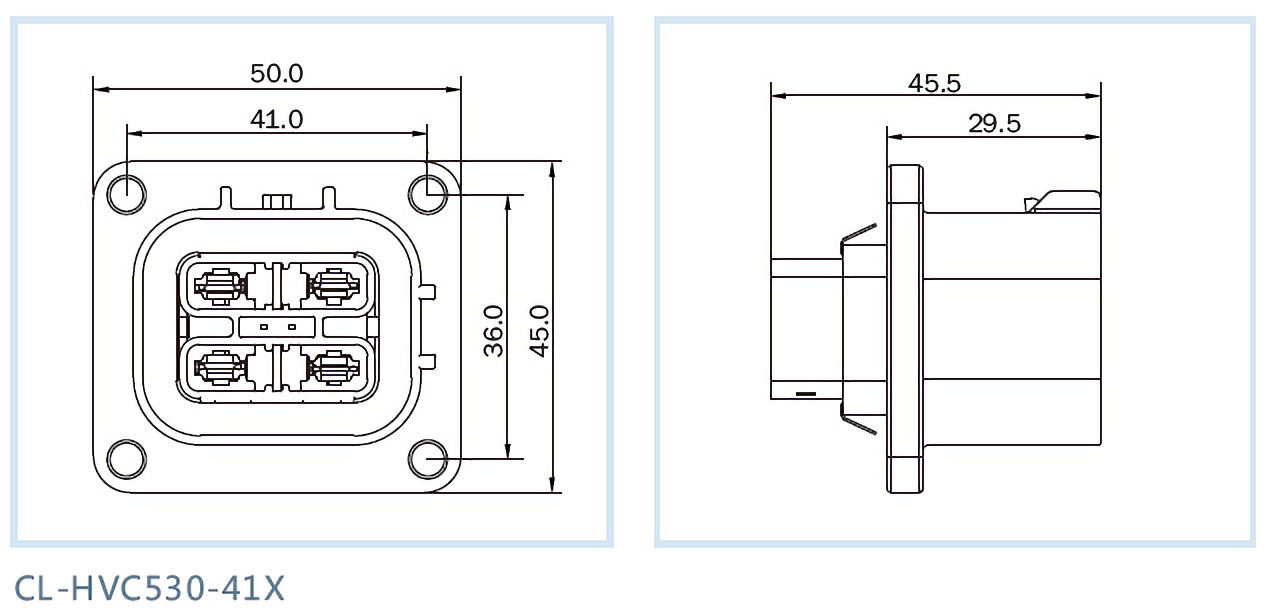

A CL-HVC530-41A-XX CL-HVC530-43A-XX CL-HVC530-42A-XX
B CL-HVC530-42B-XX CL-HVC530-43B-XX CL-HVC530-42B-XX
C CL-HVC530-43C-XX CL-HVC530-43C-XX CL-HVC530-42C-XX
Note : XX is 02, 04, 06 means 2.5mm2, 4mm2, 6mm2 cable
