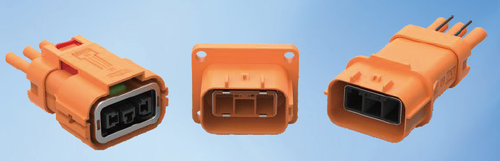

HVC 280 3POS Connector


Model No.:AR-HVC280-31X/AR-HVC280-32X/AR-HVC280-33X

Rated voltage:600V DC

Rated current:25A(Max)

Temperature range : -40℃ to +125℃

Sealing protection : IP67, IP6K9K

Electrical protection : IP2XB

Code AR-HVC280-3XX





Download: HVC 280 3POS CONNECTOR(AR-HVC280-31X & AR-HVC280-32X & AR-HVC280-33X) Specificaiton




Reference Standard : LV214, USCAR-2, USCAR-37


Product application
● High voltage accessories connection system

Description
● Sealed connection system
● HVIL inserted (use short harness connector for plug end)
● Two-stage locking system for HVIL time delay
● Two HV power circuits
● Finger touching safe
● Three stage error-proof design
● Shielding range : 360° shielded from the line to the connector
● Cable range : power circuit : 2.5mm2 to 4mm2
                            HVIL circuit : 0.5mm2


Performance
● Current capacity : 25A continuous at 85℃
● Voltage : 600V
● Temperature range : -40℃ to +125℃
● Sealing protection : IP67, IP6K9K
● Electrical protection : IP2XB



Part Number Information
Keys Receptacle Straight Plug Straight Receptacle
2.5mm2 4mm2 2.5mm2 4mm2 2.5mm2 4mm2

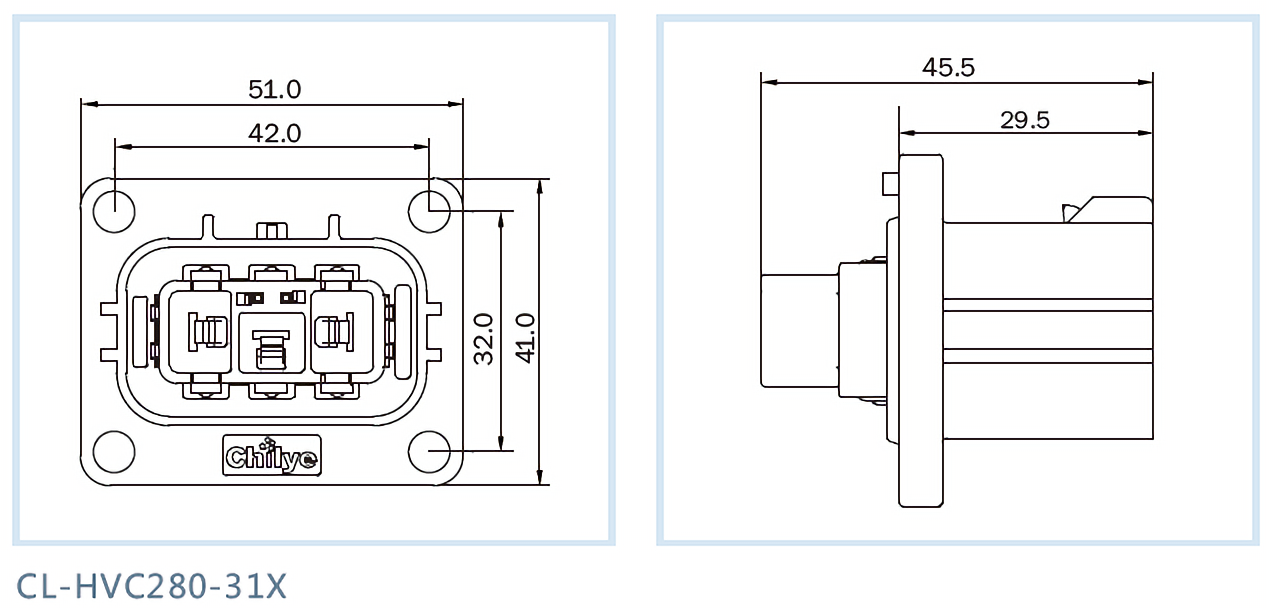

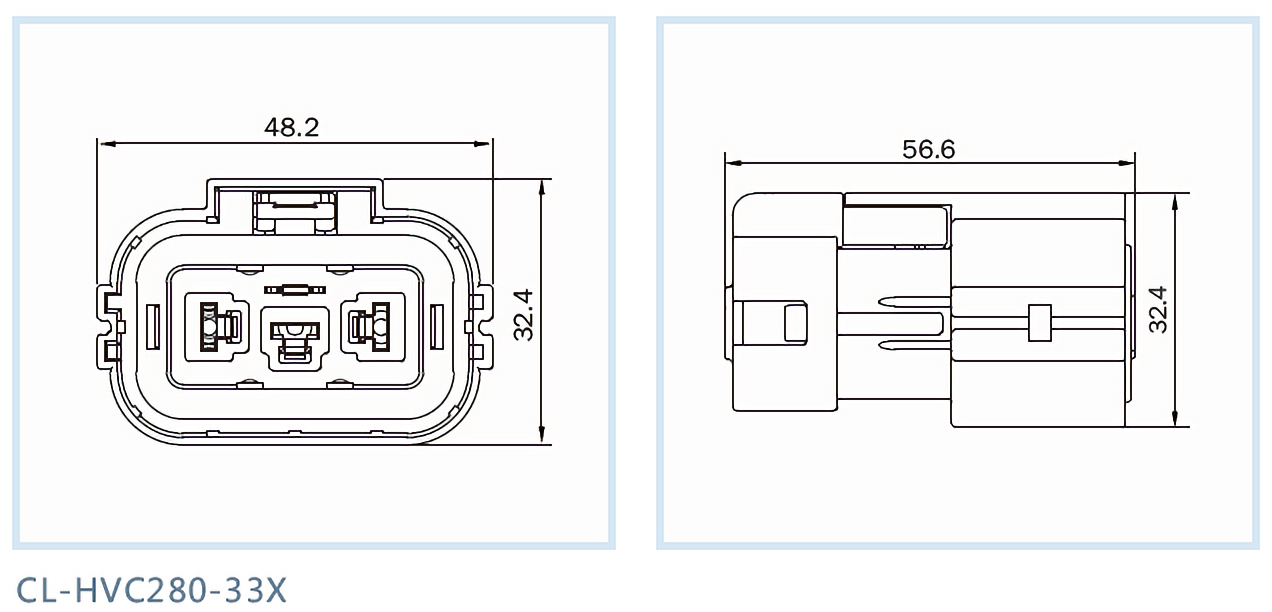

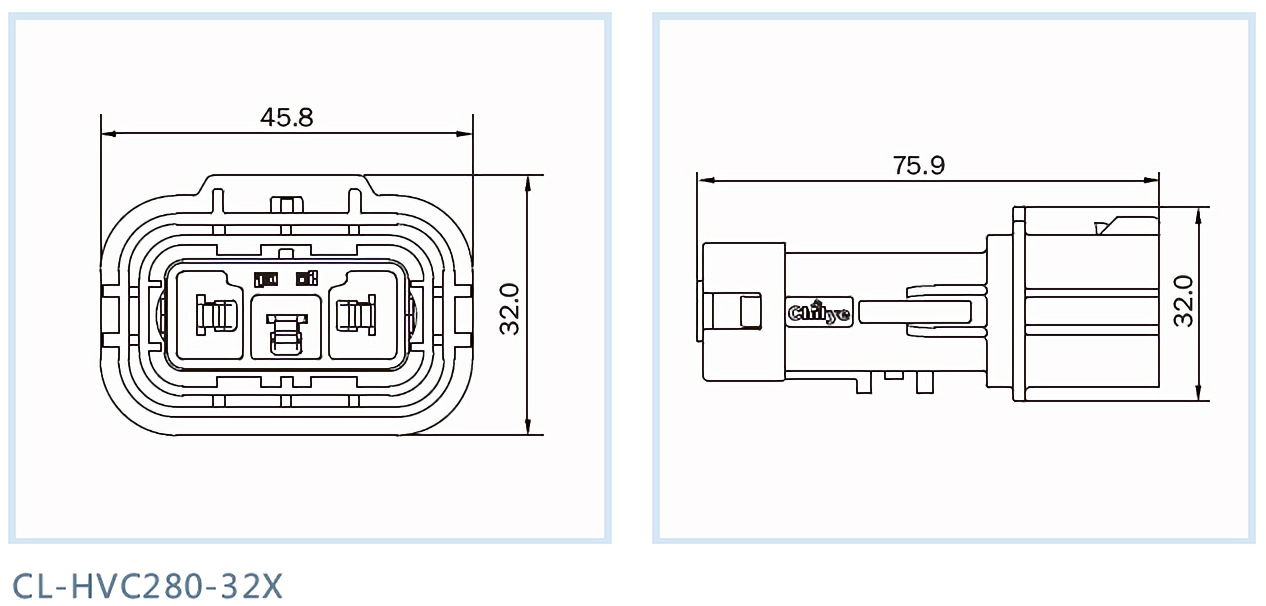

A CL-HVC280-31A-02 CL-HVC280-31A-04 CL-HVC280-33A-02 CL-HVC280-33A-04 CL-HVC280-32A-02 CL-HVC280-32A-04
B CL-HVC280-31B-02 CL-HVC280-31B-04 CL-HVC280-33B-02 CL-HVC280-33B-04 CL-HVC280-32B-02 CL-HVC280-32B-04
C CL-HVC280-31C-02 CL-HVC280-31C-04 CL-HVC280-33C-02 CL-HVC280-33C-04 CL-HVC280-32C-02 CL-HVC280-32C-04
