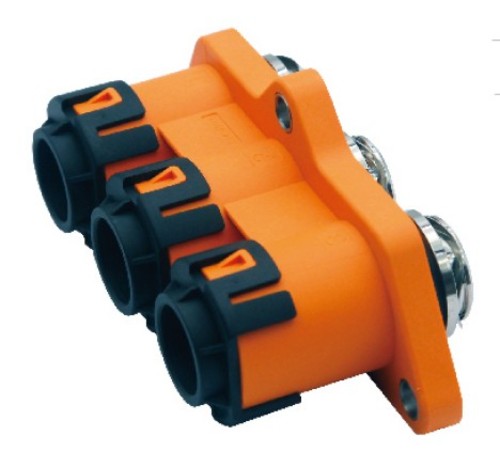

THREE-CORE THROUGH HOLE CONNECTOR  |Products|Connectors for EV

THREE-CORE THROUGH HOLE CONNECTOR


Model No.:AR-DH3-3P-AXX

Rated voltage:1000VDC

Rated current:200A(Max)

Insulation resistance : >500MΩ

Terminal temperature rise:≦50K

Withstand Voltage:3000VAC

Shielding effectiveness:360° shielding

Code AR-DH3-3P-AXX






Download: THREE-CORE THROUGH HOLE CONNECTOR(AR-DH3-3P-AXX) Specificaiton

Product application
● Mainly used in electric car battery boxes, motor drives


Characteristic
● Simple installation, reliable connection and easy disassembly
● Use plastic case, low cost and high output



Environmental performance
● Operating temperature : -40℃~+125℃
● Protection class : IP67


Mechanical properies
● Wiring range : 25mm2-50mm2
● Crimp method : Hexagonal cold crimp
● Installation method : Screw lock



Model selection table

Key position / Wire diameter A Current specification
50MM2 DH3-3P-A50 200A
35MM2 DH3-3P-A35 150A
25MM2 DH3-3P-A25 120A

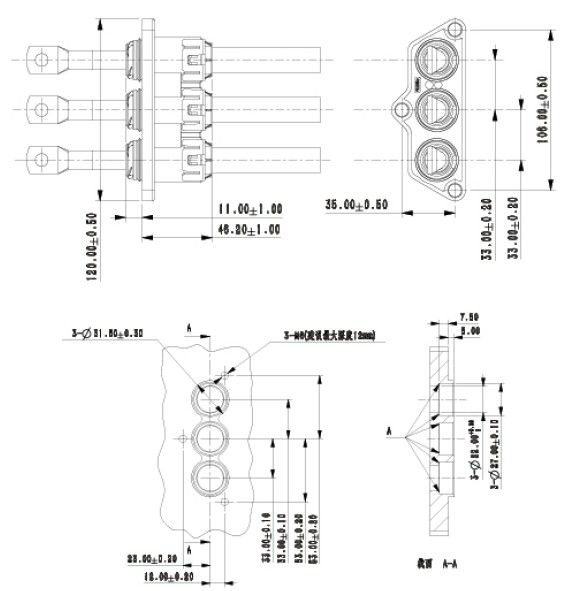

Structural parameters

​​​​​​​
