TWO-CORE THROUGH HOLE CONNECTOR  |Products|Connectors for EV & ESS

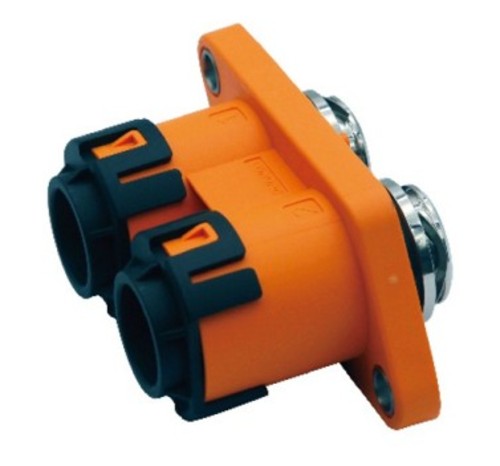

TWO-CORE THROUGH HOLE CONNECTOR


Model No.:AR-DH3-2P-AXX

Rated voltage:1000V DC

Rated current:200A (Max)

Insulation resistance:>500MΩ

Terminal temperature rise:≦50K

Withstand Voltage:3000V AC

Shielding effectiveness:360° shielding

Code AR-DH3-2P-AXX




Download: TWO-CORE THROUGH HOLE CONNECTOR(AR-DH3-2P-AXX) Specificaiton


Product application
● Mainly used in electric car battery boxes, motor drives


Characteristic
● Simple installation, reliable connection and easy disassembly
● Use plastic case, low cost and high output



Environmental performance
● Operating temperature : -40℃~+125℃
● Protection class : IP67



Mechanical properies
● Wiring range : 25mm2-50mm2
● Crimp method : Hexagonal cold crimp
● Installation method : Screw lock



Model selection table


Key position / Wire diameter A Current specification
50MM2 DH3-2P-A50 200A
35MM2 DH3-2P-A35 150A
25MM2 DH3-2P-A25 120A

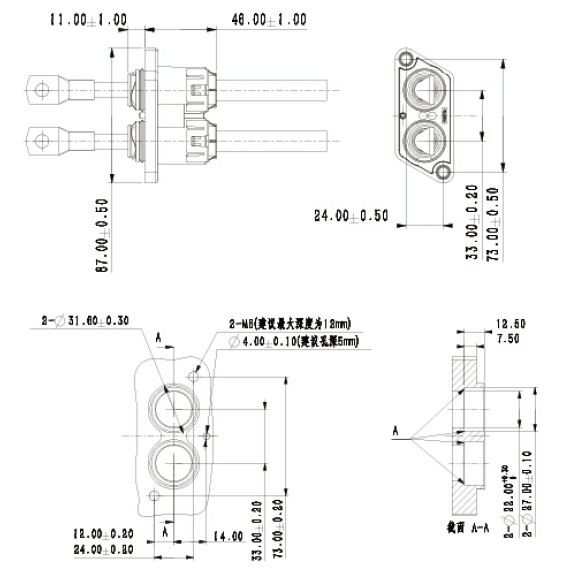

Structural parameters
