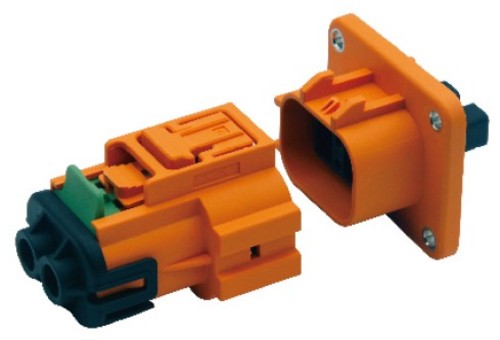

TWO-CORE 630 PLASTIC CONNECTOR


Rated voltage:1000VDC

Rated current:40A(Max)

Insulation resistance:>500MΩ

Terminal temperature rise:≦50K

Withstand Voltage:3000VAC

Shielding effectiveness:360° shielding

Code AR-DH1-2P_2R63_-XXX






Download: TWO-CORE 630 PLASTIC CONNECTOR(AR-DH1-2P63-XXX & AR-DH1-2R63-XXX) Specificaiton


Product application
● Mainly used in electric vehicles, PDU, DC/DC, PTC, oil pump, air pump


Characteristic
● Simple installation, reliable connection and easy disassembly
● Use plastic case, low cost and high output
● Built-in high-voltage interlock function, with two-stage interlocking interlock structure, limited protection automotive high-voltage circuit
● A variety of foolproof keys can be selected



Environmental performance
● Operating temperature : -40℃~+125℃
● Protection class : IP67


Mechanical properies
● Wiring range : 2.5mm2-4mm2
● Crimp method : Type B crimp
● Installation method : Screw lock
● Plug and play life : >150 times



Model selection table

Key position / Wire diameter A B C D E
4MM2 DH1-2P63-A04 DH1-2P63-B04 DH1-2P63-C04 DH1-2P63-D04 DH1-2P63-E04 Plug
DH1-2R63-A04 DH1-2R63-B04 DH1-2R63-C04 DH1-2R63-D04 DH1-2R63-E04 Socket
6MM2 DH1-2P63-A06 DH1-2P63-B06 DH1-2P63-C06 DH1-2P63-D06 DH1-2P63-E06 Plug
DH1-2R63-A06 DH1-2R63-B06 DH1-2R63-C06 DH1-2R63-D06 DH1-2R63-E06 Socket

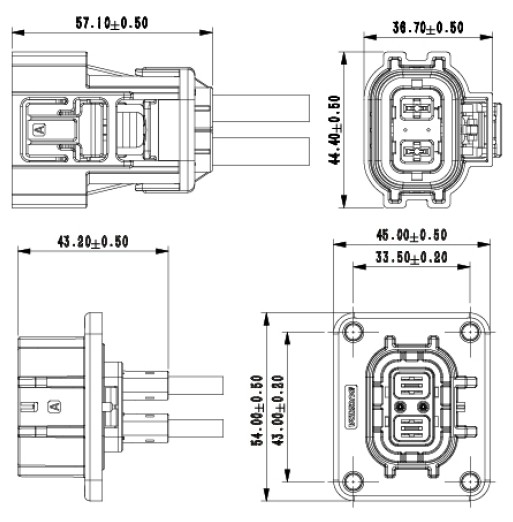

Structural parameters

Add to cart
