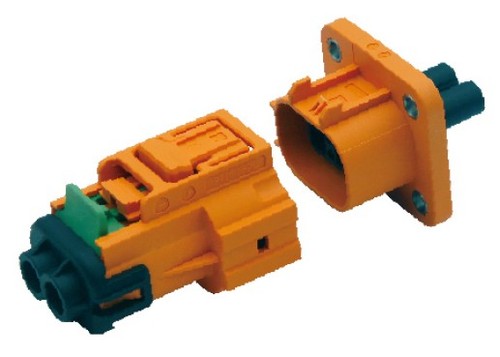

TWO-CORE 280 PLASTIC CONNECTOR


Model No.:AR-DH1-2P28-XXXX/AR-DH1-2R28-XXXX

Rated voltage:1000V DC

Rated current:25A(Max)

Insulation resistance:>500MΩ

Terminal temperature rise:≦50K

Withstand Voltage:3000V AC

Code AR-DH1-2P_2R28-XXXX






Download: TWO-CORE 280 PLASTIC CONNECTOR(AR-DH1-2P28-XXXX & AR-DH1-2R28-XXXX) Specificaiton


Product application
● Mainly used in electric vehicles, PDU, DC/DC, PTC, oil pump, air pump


Characteristic
● Simple installation, reliable connection and easy disassembly
● Use plastic case, low cost and high output
● Built-in high-voltage interlock function, with two-stage interlocking interlock structure, limited protection automotive high-voltage circuit
● A variety of foolproof keys can be selected



Environmental performance
● Operating temperature : -40℃~+125℃
● Protection class : IP67



Mechanical properies
● Wiring range : 2.5mm2-4mm2
● Crimp method : Type B crimp
● Installation method : Screw lock
● Plug and play life : >150 times



Model selection table

Key position / Wire diameter A B C D E
2.5MM2 DH1-2P28-A025 DH1-2P28-B025 DH1-2P28-C025 DH1-2P28-D025 DH1-2P28-E025 Plug
DH1-2R28-A025 DH1-2R28-B025 DH1-2R28-C025 DH1-2R28-D025 DH1-2R28-E025 Socket
4MM2 DH1-2P28-A04 DH1-2P28-B04 DH1-2P28-C04 DH1-2P28-D04 DH1-2P28-E04 Plug
DH1-2R28-A04 DH1-2R28-B04 DH1-2R28-C04 DH1-2R28-D04 DH1-2R28-E04 Socket

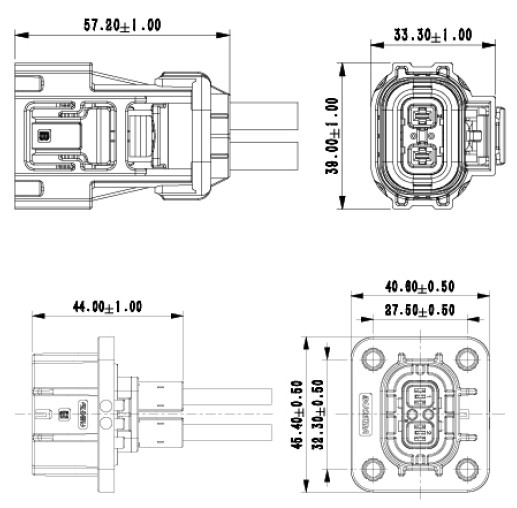

Structural parameters
