Anti Pinch Module (APM)


Model No.: APM858

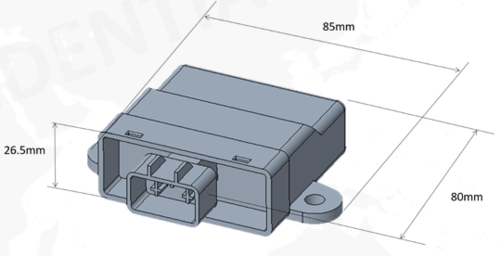

Dimensions(mm)(L x W x D): 85 x 80 x 26.50

Code APM858





APM DESCRIPTION
1.Controlling vehicle window up/down, lock on/off by switches.
2.Manual lifting: When switch button is always pulled in the 1st level, APM will receive the manual lifting signal, and the glass will go up. When switch button is released, the glass will stop immediately.
3.Manual descending: When switch button is always pushed in the 1st level, APM will receive the manual descending signal, and the glass will go down. When switch button is released, the glass will stop immediately.
4.Automatic lifting: When switch button is pulled in the 2nd level, APM will receive the automatic lifting signal, and the glass will go to the top. (APM executes the automatic lifting moves after completing the self-learning process). APM needs the automatic closing signal: "Global Close" in the lifting process.
5.Automatic descending: When switch button is pushed in the 2nd level, APM will receive the manual descending signal, and the glass will go down to the bottom. APM needs the automatic opening signal: "Global Open" n the descending process.
6.In the automatic mode, glass will stop immediately when the switch inputs the lifting or descending signal.

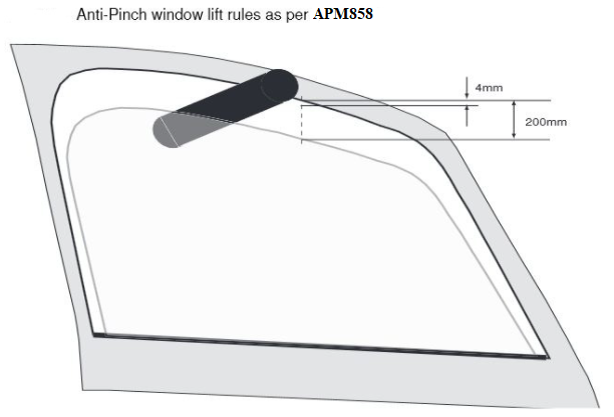

7.APM anti-pinch function
8.Windows are raising manually or automatically, the APM detect window resistance or a foreign object, it will immediately stop windows ascending and descending.

HARDWARE  SPECIFICATION

Discerption

Specification

Working voltage

8~18V

Quiescent current

≤1mA

Communication interface

CAN/LIN/Analog/Digital

Operating temperature

-40°C~85°C

Storage temperature

-40°C~90°C

Design following

ISO 26262/ ASIL: A level

Components request

Following AEC-Q standard

Module weight

<150g

Protection

IP56


Function list
1.  Window control
2.  Manual operation
3.  Automatic operation
4.  Delay control
5.  Control priority
6.  Locking passenger window control
7.  Remote control & comfort control
8.  Lifting via remote control
9.  Descending via remote control
10. Comfort lifting
11. Comfort descending
12. Alarm behavior
13. Anti Pinch Function
14. Protection
15. Learning function

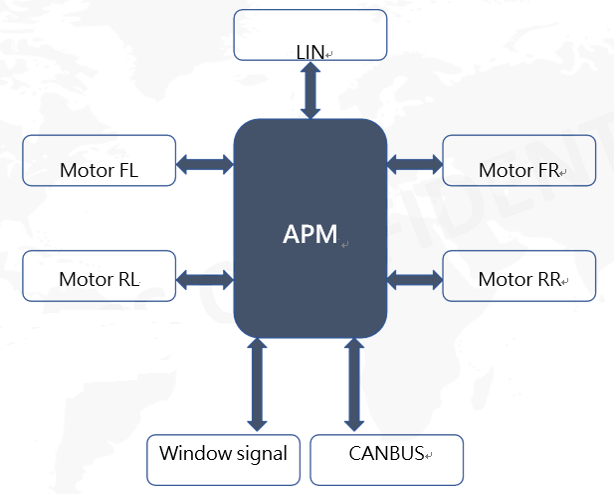

System diagram
