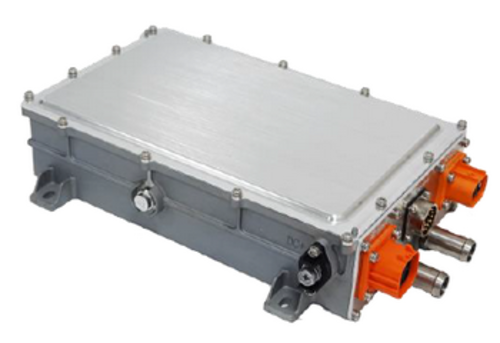

Combo 2kw dcdc+6.6kw obc with inverter mode_sae


Model No.:H-ATD2KCB6K6-D14380-W-S

Power:2kw DCDC+6.6kw OBC

Input Voltage:OBC:85-265VAC/DCDC:250-450VDC:

Output Voltage:OBC:250-450VDC/DCDC:14VDC

Output Current:OBC:32A/DCDC:145A

Efficiency:≧94%

Code 2KWDCDC-6k6OBC





Download : Combo 2kw dcdc+6.6kw obc  with inverter mode_sae_12VDC


Electrical characteristics

1. OBC Charging mode

6.6 KW On Board Charger

Items

Parameter

1

Charging Mode

SAE(AC Type 1)

2

LV (VCU)  wake up

12Vdc/200mA

3

PP/CP function

Supported

4

PP/CP detected via

OBC

5

OBC Wake-up method

AC+CP+EN wake up

6

OBC Output start method

CAN control

7

Actuator(E-Lock)

without Actuator
(E-Lock)

8

Actuator(E-Lock) controlled by

Without supported

9

Charging Inlet(Socket) Temperature sensor

Without sensor

10

Frame format

Extended ID

11

Byte order

Motorola

12

Baud rate

 500Kbps

13

OBC with / without interlock function

Without

14

CAN Protocol No.

AT5ME

15

CAN bus matrix File Name

cc-03_EA22-054_ATD2KC6K6-D14C380-W_6.6KW
OBC_CAN_protocol 500Kbps, Motorola, Extended -V0_20220713



2. DCDC converter mode

On Board Charger Charging Mode

Specification

Remark

Rated output power

6.6KW



Input voltage range

85-265VAC



Input Current

32A Max



Power factor

≥0.99(220Vac,Fully loaded)



Output voltage range

250-450VDC



Max output current

20A



Efficiency

≥94%

Rated voltage

Voltage accuracy

±1%



Current accuracy

±1%



Inverter mode

Input voltage range

250-450VDC



Output voltage

220Vac(±5%)/50Hz



Power

6kVA



Efficiency

≥94%



Output harmonic distortion (THDv)

3%Linear load



Dynamic Response

60msLinear load



Leakage current protection threshold

≤30mA



DC/DC mode

Input voltage range

250-450VDC



Input current range

<16A @240Vdc full load



Efficiency

≥94%



Output voltage range

9-16V



Rated output voltage

14V



Rated output current

145A



Rated power

2KW



Peak power

2.4KW



Voltage ripple

300mV Max



Others

Low voltage wake up

12Vdc&200mAmaxWAKE_UP  Signal

Wake  BMS/VCU

Wake-up method

AC+CP+EN

Support reservation charging

Communication method

CAN-BUS



Quiescent Current

≤1mA

Consume battery current in sleep/stop state.

Protection characteristics

Input over-voltage, output over-voltage, over- temperature protection, over-current protection,

Output short circuit protection, communication fault protection



EMC characteristics

GB/T18387-2008EN 55022



Operating temperature

-40-85℃

Coolant inlet temperature

Dimensions

326x211x83mm



Protection level

IP67



Cooling method

Liquid cooling, flow≥8L/min



Weight

≤9KG
