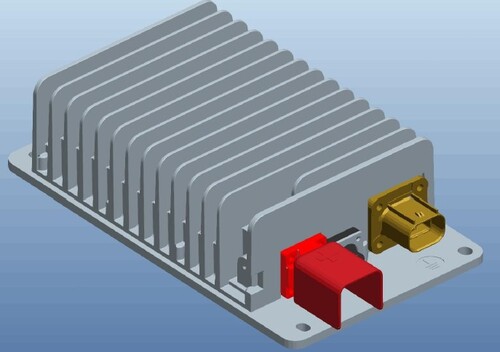

◆Model List:
| Nominal Input |
Nominal Output |
Model | Configuration | Heating Dissipation Mode |
| 72V | 14.0V | ATD1K-7212-A | CANxxxx/N | Natural Air Cooling |
| 96V/108 | 14.0V | ATD1K-10812 -A | CANxxxx/N | Natural Air Cooling |
| 144V | 14.0V | ATD1K-14412-A | CANxxxx/N | Natural Air Cooling |
| 320V | 14.0V | ATD1K-32012-A | CANxxxx/N | Natural Air Cooling |
◆Features:
| Model | ATD1K-7212-A | ATD1K-10812-A | ATD1K-14412-A | ATD1K -32012-A | |
| Input | Nominal Voltage | DC72V | DC96V/DC108V | DC144V | DC320V |
| Nominal Current | 15A | 10A/11A | 5A | 3.5A | |
| Max Working Current |
≤25A | ≤18A | ≤12A | ≤8A | |
| The range of input voltage |
44-97V | 72-162V | 100-200V | 220-450V | |
| The protection of under voltage |
42V±2V | 70V±2V | 96V±4V | 215V±5V | |
| The protection of over voltage |
100±3V | 162±4V | 215±5V | 455±5V | |
| Activation Time | ≈0.5S @ VIN=72V |
≈0.5S @ VIN=108V |
≈0.5S @ VIN=144V |
≈0.5S @ VIN=320V |
|
| Output | Nominal Voltage | 14.0V±1% | |||
| Voltage Range | 8.0-15V | ||||
| Nominal Output Current |
72A | ||||
| Nominal Output DC Power |
1000W | ||||
| Peak Power | 1200W Continues 6 Minutes | ||||
| Max Efficiency | ≥94% | ||||
| Instant Responding |
≤50ms | ||||
| The Adjustment rate of voltage |
0.01 | ||||
| The Adjustment rate of loading |
≤1% | ||||
| The steady voltage accuracy |
≤1% | ||||
| The steady current accuracy |
≤2% | ||||
| The leaking current of output terminal |
≤1mA | ||||
| The current leakage |
≤1mA | ||||
| The Output Ripple | ≤276mV @ 12V | ||||
| Signal | 12Enable Signal | 6-30V | |||
| 12V Enable current |
≤1mA | ||||
| Safety Regulation and Other | Hi pot Test | Input to earth: 2000VAC<10ma 1 min. | |||
| Grounding Resistance |
The value of the resistor between grounding and heating sink is smaller than 100 ohm.. The testing current is 25A AC. |
||||
| Voltage Resistance |
2000V Between Input terminal and shell, there is no Corona,ionization,Flying Fox,Breakdown phenomenon. |
||||
| Insulation Resistance | In ambient temperature (23±2) ℃and humidity 80％～90％, input to shell is not smaller than 20MΩ, testing voltage is 1000VDC. |
||||
| Noisy | ≤50dB @ 1m away from converter | ||||
| Electromagnetic Immunity |
Compliant with GB/T 18487.3-2001 11.3.1 | ||||
| Electromagnetic Abusive |
Compliant with GB/T 18487.3-2001 11.3.2 | ||||
| Harmonic Current |
Compliant with GB 17625.1-2003 6.7.1. | ||||
| Activation Inrush Current |
≤3A | ||||
| Current Raise Time |
100% to 10% ≤50mS; 100% to 0% ≤200mS | ||||
| Protection Grade |
IP67 | ||||
| Anti-Vibration | 10-25Hz, Amplitude 1.2mm, 25-500Hz 30m/s2, 8 h each direction | ||||
| Reliability | MTBF 150000 H | ||||
| Ambient Humidity |
5％～95％ NO condensation | ||||
| Ambient Temp. | -40 ~ 65℃ | ||||
| Storage Temp. | －55℃ ~ ＋85℃ | ||||
