1.5KW DC/DC Converter Natural Cooling System  |Products|DC/DC Converter (Fuel cell)

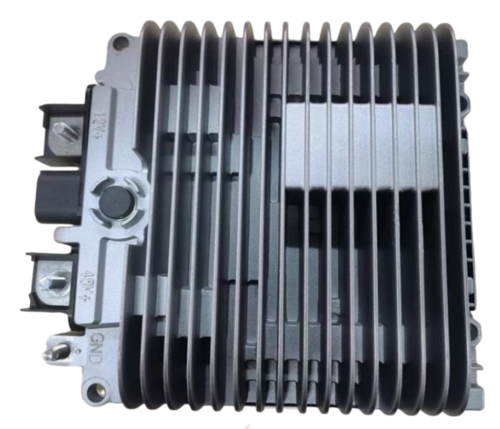

1.5KW DC/DC Converter Natural Cooling System


Model No.:ATD1K5-4812-A

Output Power:1.5KW

Input Voltage:30~58VDC

Output Current:110A

Output Voltage:14VDC

Dimensions:220x250x60mm

Protection Level:IP67

Code 1K5_DCDC






Download:1.5KW DC/DC Converter Natural Cooling System Specification



Features

●Output Power:1.5KW
●Input Voltage:30~58VDC
●Output rated voltage:14VDC
●Output Currant:110A

●Dimensions:220x250x60mm
●Cooling System:Natural Cooling
●Communication Method:CAN
●Weight: ≦2.3KG


Series Specification

Item Part Name Model Name Power (W) Input Voltage (VDC) Output Voltage (VDC) Output Current (A) Efficiency Size (mm) Cooling System Weight (Kg) Certificate
1 1.5KW DC-DC
CONVERTER
ATD1K5-4812-A 1500 30-58 14V 110A 94% 220x250x60 Nature-cooled 2.3 CE

Specification

Item

Condition

Remark

Storage  Temperature

- 40 ℃~105 ℃

/

Operating
Temperature

-40 ℃~ 60 ℃



Humidity

5 % ~ 95 %

Relative
humidity

Cooling  Way

Nature  cooling

/

Altitude

Normal operation under 2000 m,given  the usage  conditions  above
2000 m

/

Auxiliary power

9~32VDC

VCC

IP  Level

IP67
