1.5KW DC/DC Converter Fan  |Products|DC/DC Converter (Fuel cell)

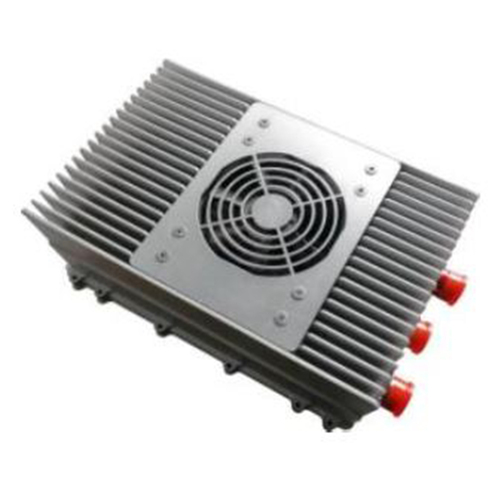

1.5KW DC/DC Converter Fan


Model No.: ATD1K5-380S14-A

Power:1.5KW

Input Voltage:250~450VDC/400~750VDC

Output Voltage:13.8VDC

Output Current:109A

Efficiency:95%

Code 1K5_DCDC_Air






Download:Model No_ATD1K5-380S14-A Specification


Download:Model No_ATD1K5-540S14-A Specification



Download: 1.5KW DC/DC Converter Fan 3D Drawing



Features

● Output Power:1.5KW
● Input Voltage:250~450VDC/400~750VDC
● Output Voltage:13.8VDC

● Output Current:109A
● Dimensions:262x180x120mm
● Cooling System:Fan
● Protection Level:IP67(Except for fans)
● Communication Method:CAN
● Enclosure: Aluminum alloy made
● Software: Digital software design


Series Specification

Item Part Name Model Name Power (W) Input Voltage
 (Vdc)
Output Voltage
 (Vdc)
Output Current
(A)
Efficiency Size (mm) Cooling system Weight (Kg) Certificate
1 1.5KW DC/DC
CONVERTER
ATD1K5-380S14-A 1500 250~450 13.8 109 95% 262x180x120 Fan 4.5 GB/T
2 ATD1K5-540S14-A 400~750

Specification

Description Technical specifications Remark
Operating temperature -40~85℃ 85~100℃,Can be derated to 40% of work
Rated output power 1.5KW (continuous operation at full load) Peak power 1.8KW
Input voltage range 250~450VDC/400~750VDC
Output rated voltage 13.8VDC 12~16 Adjustable
Rated output current 109A
Auxiliary power VCC 9~18VDC
Efficiency ≥95% Rated voltage Full load
Output voltage ripple ≤500mVPK-PK
Protection characteristics Input over-voltage, output over-voltage, input anti-reverse connection, output over-current and short-circuit protection, over-temperature self-recovery
Over temperature protection The bottom plate temperature reaches 85 °C and starts derating output. The temperature exceeds 100 °C, shutting down; the temperature is lower than 95 °C, which can be self-recovery.
Dielectric strength

Input to output 3000VDC/1min  1mA max
Input to the outer casing 3000VDC/1min  1mA max
Insulation resistance

Input to output ≥20MΩ
Input to the outer casing ≥20MΩ
Battery compatibility

Radiation emission GB/T 18655-2010  Class 3
Conducted emission GB/T 18655-2010  Class 3
Static immunity GB/T 19951-2005  Air discharge:15KV,Contact discharge 8KV
Radiation immunity GB/T 18655-2010  Class 3
High current injection GB/T 17619-1998
Fast burst immunity GB/T 17626.4-2008  1KV


Structural parameters



Connector model



Position Socket model Function Brand Plug model
A RT00122PN03 DC input Amphenol RT06122SNHEC03
B RT00128PN03 Control terminal Amphenol RT06128SNHEC03
C RTHP0141PN-H1 Output positive Amphenol RTHP6141SNH-25PS2
D M8 bolt Output negative \ M8 Screw


Interface definition


Vendor  Model Description
Amphenol RT00128PN03 A NC
B CANL
C CANH
D Shielded wire
E GND
F NC
G NC
H Enable
Amphenol RT00122PN03 A Input positive
B Input negative
1 Interlock 1 connection 2
2 Interlock 2 connection 1
Amphenol RTHP0141PN-H1 + Output positive
