4POS High Voltage Plastic Shell Connector With Shield(REL2)產品圖
4POS High Voltage Plastic Shell Connector With Shield(REL2)

Model No.; REL2-T4PAH-2.5(4)(6)-B(A)(C)(D)

Current rating: 16A=2.5mm

25A=4mm

40A=6mm

Voltage rating: 1000V DC

Shield: Option

HVIL: Option

Temperature range: -40° ~+140°

代碼: REL2
REG-2(3)-WTP-A(B)(C)H-50-A-TW產品圖
REG-2(3)-WTP-A(B)(C)H-50-A-TW

Model No.:REG-2(3)-WTP-A(B)(C)H-50-A-TW

Voltage rating: 750V DC

Withstand voltage: 3000V AC 1min

Insulation resistance: 5000MΩ

Shielding: optional

HVIL: Yes

代碼: HV_CONNECTOR_REG
1 POS / 2 POS / 3 POS Plastic Shell Connector (RIPT)產品圖
1 POS / 2 POS / 3 POS Plastic Shell Connector (RIPT)

Model No.:RIPT-1(2)(3)-35P(25)(50)-A(B)(C)(D)-TW

current rating:120A(200A)(250A)

Voltage rating:700V.DC

代碼: 16_RIPT_Series
Metal Shell Connector (RIPTII)產品圖
Metal Shell Connector (RIPTII)

Model No.:RIPTII-2-70(25)(35)(50)(70)P-A-TW

current rating:120A/200A/250A/300A

Voltage rating:1000V.DC

代碼: 16_RIPTII_Series
High voltage super current connector with shield REX產品圖
High voltage super current connector with shield REX

Model No.:400A_REX-2WTPX(Y)H-120(70)(90)-A-TW

Voltage(Vdc):1000V

Current(A):400A/300A/250A

POS: 2

Cable size(mm²): 70-120

 IP Rating:IP68,IP6K/9K

Shielding: Option

Workingtemperture(°C): -40°C~140

代碼: 400A_CONNECTOR_REX
12PIN Heavy Truck Battery Swap Connector產品圖
12PIN Heavy Truck Battery Swap Connector

Model No.: PFSC-JXA-BS1270(1295)(1250)(1295)/PFSC-JXA-CP1270(1295)(1250)(1295)

Current Rating:250~ 350A

Voltage Rating: 1000V DC

Shield: Option

HVIL: Option

Temperature: -40°C ~+125°C

代碼: 12PIN_SWAP_Connector
1.8KW DC/DC Converter Fan Cooled System產品圖
1.8KW DC/DC Converter Fan Cooled System

Model No.:ATRD1K8 Series

Output Power: 1.8KW

Input Voltage Range(VDC): 200-450/360、200-450/360

Rated Output Voltage(VDC):14/129、54/33

Output Voltage Range(VDC): 0~16

代碼: ATRD1K8_Series
Input DC 240-360V Output 1.8KW DC/DC Converter Fan產品圖
Input DC 240-360V Output 1.8KW DC/DC Converter Fan

Model No.:ATRD1K8-307S14F

Output Power: 1.8KW

Input Voltage Range(VDC): 240-360

Rated input Voltage(VDC):307

Output Voltage Range(VDC): 0~16

Rated Output Voltage(VDC): 14

代碼: ATRD1K8-307S14F
200-500V 1.8KW DC/DC Converter Fan產品圖
200-500V 1.8KW DC/DC Converter Fan

Model No.:ATRD1K8-360S14F

Output Power: 1.8KW

Input Voltage Range(VDC): 200-500

Output Voltage Range(VDC): 0~16

Rated Output Voltage(VDC): 14

Output Current Continous(A): 128

代碼: ATRD1K8-360S14F
Input DC 200~500V Output 14V 1.8KW DC/DC Converter Module產品圖
Input DC 200~500V Output 14V 1.8KW DC/DC Converter Module

Model No.ATRD1K8-360S14M

Output Power(KW): 1.8

Input Voltage Range(VDC): 200-500

Rated Input Voltage(VDC): 360

Output Voltage Range(VDC): 0~16

Rated Output Voltage(VDC): 14

代碼: ATRD1K8-360S14M
Input DC 200-500V Output 27.5V 1.8KW DC/DC Converter Fan產品圖
Input DC 200-500V Output 27.5V 1.8KW DC/DC Converter Fan

Model No.：ATRD1K8-390S275F

Output Power: 1.8KW

Input Voltage Range(VDC): 200-500 Rated Input Voltage(VDC): 390

Output Voltage Range(VDC): 0~32

Rated Output Voltage(VDC): 27.5

Output Current Range(A): 0~109

代碼: ATRD1K8-390S275F
0-450V 20KW DC/DC Converter Bidirectional Fan產品圖
0-450V 20KW DC/DC Converter Bidirectional Fan

Model No.:ATRDB20K-360S360F

Output Power: 20KW

Input Voltage Range(VDC): 100-142

Output Voltage Range(VDC): 0-450

Rated Output Voltage(VDC): 360

Output Current Continuous(A): 55

代碼: ATRDB20K-360S360F
300A Product Specification for REB Connector(REL2)產品圖
300A Product Specification for REB Connector(REL2)

Model No.; REB-TAPAH-6-B(A)(C)(D)(E)(F)(G)(N)

Current rating: 120A=25mm²

180A=35mm²

250A=50mm²

300A=70mm²

Voltage rating: 1000V DC

Shield: Option

代碼: REB-TAPAH-6-B
Manual Service Disconnector ( MSD14)產品圖
Manual Service Disconnector ( MSD14)

Model No.:RC-MSD14-T(Z)-H-A(B)(C)

Rated voltage: 500V DC

Current rating: 160~630A

代碼: 630A_500V_MSD14
FPT60N21208S0-0_Rev01_8P LV_主要_20260213產品圖
FPT60N21208S0-0_Rev01_8P LV_主要_20260213

Model No.SCN-Q015_FPT60N21208S()-()_Rev01_8P LV_主要

Rated Current : 5A. 7A

Rating Voitage : 300V

代碼: SCN-Q015
FPT20N()1208PN-()_RevA_8P插座產品圖
FPT20N()1208PN-()_RevA_8P插座

Model No.SCN-Q016_FPT20N()1208PN-()_RevA_8P插座

Rated Current : 5A. 7A

Rating Voitage : 300V

OperationTemperature : -40°C~125°C

TestVoltage : 1500VAC

代碼: SCN-Q016
7.5KW DC/AC Auxiliary Inverter Module產品圖
7.5KW DC/AC Auxiliary Inverter Module

Model No.:ATM7K5-540S24M-V6H4D7.5G

DC supply voltage range: DC 350V—750V

Controller communication mode:CAN 2.0

Low voltage power consumption:≤12W

Heat dissipation:0.2KW

Efficiency:≥93%

代碼: ATM7K5-540S24M

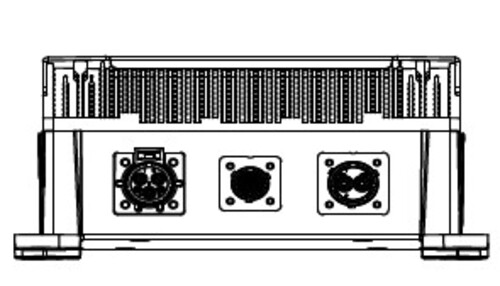

Non-Isolated Step-Down Fast Charging DC/DC CONVERTER產品圖
Non-Isolated Step-Down Fast Charging DC/DC CONVERTER

Model No.:ATRFD7K-300S96M

Output Power: 7KW

Input Voltage Range(VDC): 200-750

Output Voltage Range(VDC): 0-200

Rated Output Voltage(VDC): nominal 96 V / 108 V

Output Current Continuous(A): 0-80

代碼: ATRFD7K-300S96M
