Manual Service Disconnector(MSD2)產品圖
Manual Service Disconnector(MSD2)

Working Temperature: -40°C ~+125°C

Relative humidity: 95%(40°C)

Vibration: 10~55GHz, amplitude 0.75mm

Mechanical Shocks: 980m/s^2

Handle lock after retention: ≥200N

代碼: HV_CONNECTOR_MSD2
Manual Service Disconnector(MSD7)產品圖
Manual Service Disconnector(MSD7)

■   Fuse current: Voltage 750V.DC 200A - 400A ; Voltage 500V.DC 500A ■   Current Rating : 250A

代碼: HV_CONNECTOR_MSD7
2/3POS High Voltage plastic connector with shield(RED)產品圖
2/3POS High Voltage plastic connector with shield(RED)

Main applying to battery heating positive temperature coefficient(PTC), OBC, PDU, Compressor.

代碼: HV_CONNECTOR_RED
Multi POS High Current Plastic Shell Connector with Shield(REG)產品圖
Multi POS High Current Plastic Shell Connector with Shield(REG)

Voltage rating: 750V DC

Withstand voltage: 3000V AC 1min

Insulation resistance: 5000MΩ

Shielding: optional

HVIL: Yes

代碼: HV_CONNECTOR_REG
Multi POS High Current Plastic Shell Connector with Shield(REG1)產品圖
Multi POS High Current Plastic Shell Connector with Shield(REG1)

Voltage rating: 1000V DC

Withstand voltage: 5000V AC

Insulation resistance: 5000MΩ/1000V DC

Shielding: optional

HVIL: YES(HVIL is normal, Non-HVIL is optional)

代碼: HV_CONNECTOR_REG1
4POS High Voltage Plastic Shell Connector With Shield(REN1)產品圖
4POS High Voltage Plastic Shell Connector With Shield(REN1)

Model No.: 2TAH-25P-B-TW / 2ZPATH-B-TW

Current rating: 80A=16mm

125A=25mm

Voltage rating: 1000V DC

Shield: Option

HVIL: Option

Temperature range: -40° ~+140°

代碼: HV_CONNECTOR_REN1
High Voltage Metal Shell Connector(REQ4)產品圖
High Voltage Metal Shell Connector(REQ4)

Voltage rating:1000V DC

Contact resistance: ≤3mΩ

Withstand voltage: ≥ 3000V AC 1Min

Insulation resistance: ≥ 3000MΩ(≤40°C, ≤50%RH);

≥ 300MΩ(>95%RH)

Mating cycle: 20 times

代碼: HV_CONNECTOR_REQ4
12/18 POS Circular Signal Plastic Shell Connector(RS4)產品圖
12/18 POS Circular Signal Plastic Shell Connector(RS4)

Applying to battery management system and other EV signal control system.

代碼: HV_CONNECTOR_RS4
金屬高壓連接器產品圖
金屬高壓連接器

額定電壓:1000VDC

額定電流:20 A~500 A

防護等級:IP67

代碼: POWERLOCK
4POS High Voltage Plastic Shell Connector With Shield(REL2)產品圖
4POS High Voltage Plastic Shell Connector With Shield(REL2)

Model No.; T4PAH-6-B / Z4PAH-6-B

Current rating: 16A=2.5mm

25A=4mm

40A=6mm

Voltage rating: 1000V DC

Shield: Option

HVIL: Option

Temperature range: -40° ~+140°

代碼: REL2
HV_Connector_REMII產品圖
HV_Connector_REMII

Current rating:16A(For2.5mm2cable);

25A(For4mm2cable);

40A(For6mm2cable);

Voltage rating:700V DC

Withstand voltage:3000V AC 1 min

Insulation resistance:3000MΩ

Shielding:optional

HVIL: optional

代碼: REM_II
HV_Connector_REMIII產品圖
HV_Connector_REMIII

● Model No.: T2PAH-6-B-TW / Z2PAH-6-B-TW

● 2POS

● Plastic Shell

● Locking handle and Secondary locking structure

● False-proof design (IPXXB)

● IP Degree: IP6K9K、IP68

● Cable Size: 2.5mm

代碼: REMIII
DC/DC_1KW_65~100VDC_13.6V_Air產品圖
DC/DC_1KW_65~100VDC_13.6V_Air

Output Power:1000W

Input Voltage:65~100Vdc

Output Voltage:13.6±0.6VDC

Cooling System:Natural Air or Forced Air

代碼: 1KW_DCDC
1KW DC-DC Converter產品圖
1KW DC-DC Converter

Model No. ATD1K-96S12-F

Output Power:1KW

Input Voltage:82-114Vdc

Output Voltage:14.2Vdc

Cooling System:Fan

代碼: 1KW_DCDC_96S12
DC/DC_240W_36~84VDC_12V_Heat sink產品圖
DC/DC_240W_36~84VDC_12V_Heat sink

Output Power:240W

Input Voltage:36~84Vdc

Output Voltage:12±5%VDC

Cooling System:Heat sink

代碼: 240KW_DCDC
DC/DC_240W_6-18VDC-26V產品圖
DC/DC_240W_6-18VDC-26V

Model No.:AR240W-1224V

Power:240W

Input Voltage:6~18 VDC

Output Voltage:26±0.5V

Output Current:10A

代碼: AR240W-1224V
300W DC/DC converter產品圖
300W DC/DC converter

Model No.:AR300W-2713V

Power:300W

Input Voltage:18~36 VDC

Output Voltage:13±0.5V

Output Current:10A

代碼: AR300W-2713V
1KW DC/DC Converter TDC-IY Series產品圖
1KW DC/DC Converter TDC-IY Series

Model No.:AR-TDC-IY-72/108/144/320-12

Power:1KW

Input Voltage:44-97/72-162/170-300/220-450V

Output Voltage:14.0V

Output Current:72A

Efficiency:94%

代碼: AR-TDC-IY
6KW DC/DC Converter-Liquid產品圖
6KW DC/DC Converter-Liquid

ATD6K-540S27-W

Output Power:6KW

Input Voltage:400~750Vdc

Output Voltage:27.5Vdc

Dimensions:326x211x83mm

Protection Level:IP67

Communication Method:CAN-BUS

Enclosure: Aluminum alloy made

代碼: ATD6K-540S27
DC/AC_10KW_280-750VDC, 110/220VAC_Air產品圖
DC/AC_10KW_280-750VDC, 110/220VAC_Air

Model No.:DDAC1-10K2P

Power:10KW

Input Voltage:280~750VDC

Output Voltage:110VAC OR 220VAC

Output Current:45A

代碼: DDAC1-10K2P
6KW DCDC Converter Liquid產品圖
6KW DCDC Converter Liquid

Model No.: GVD510-1CM6R0LD

Rated Power: 6000W

Input Votage Range: 180-750VDC

Output Voltage: 27.5Vdc

代碼: GVD510-1CM6R0LD
3KW DC/DC Convertor Liquid Cooling System產品圖
3KW DC/DC Convertor Liquid Cooling System

Model No.:GVD510-3BM3R0LD

Rated Power: 3KW

Input Votage Range: 400V-750V

Output Voltage: 24V

Dimensions: 249.6mm×176.6mm×68.3mm

Weight: 3.6KG

代碼: GVD510-3BM3R0LD

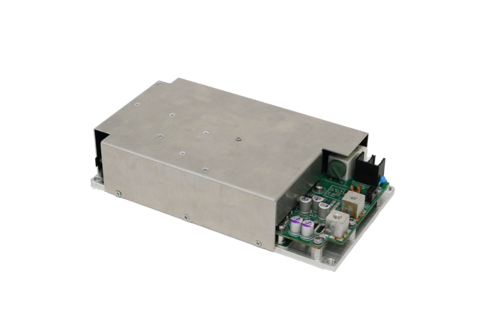

DC/DC_3KW_400-750VDC, 27.5Vdc_Module產品圖
DC/DC_3KW_400-750VDC, 27.5Vdc_Module

Model No.:GVD510-3BM3R0MB

Power:3KW

Input Voltage:400V-750V

Output Voltage:27.5VDC

Efficiency:≥94%

代碼: GVD510-3BM3R0MB
1.5KW DC/DC CONVERTER產品圖
1.5KW DC/DC CONVERTER

Model No.:LWD1K5-380S14-W , LWD1K5-540S14-W

Power:1.5KW

Input Voltage:250~450VDC/400~750VDC

Output Voltage:13.8VDC

Output Current:73A

Efficiency:95%

代碼: LWD1K5-380540S14-W
