Model No.:ATD3K-144(360)(540)S14(27)(48)-TR2004

Output Power:3KW

Input Voltage:80~400VDC

Output voltage and current range:14-48VDC/0-110A

Model No.：ATD3K-144(360)(540)S24F-RD3P0144(360)(540)-24

Rated output power：3KW

Output voltage range：0～32V

Rated output voltage：27V

Output response time：≤200mS

Model No.:ATRD3K-128S27F

Output Power: 3KW

Input Voltage Range(VDC): 80-200

Output Voltage Range(VDC): 0~32

Rated Output Voltage(VDC): 27

Output Current Continuous(A): 110

Model No.:AT2D3K1-615S2427-M

Output Power: 3.1KW

Input Voltage: 400~800VDC

Output Voltage with 2 output: 24VDC & 27VDC

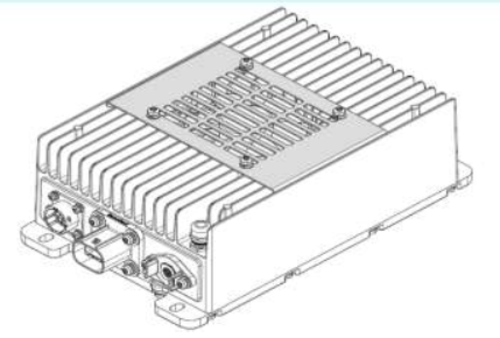

Model No.ATRD3K6 SERIES

Rated output power:3.6KW/p>

Input voltage range: 80~750V

Output voltage range: 0～64V

Dimensions(mm): 368 x 273 x 112

Weight(KG): ≤ 13.5Kg±0.5Kg

Model No.:ATD3K5-640S14-M

Power:3.5KW

Input Voltage:400~900VDC

Output Voltage:9~16VDC

Rated output current:250A

DC- weighted conversion efficiency:92%

Model No.: ATD5K-330S48-W

Power: 5KW

Input Voltage: 250~450VDC

Output Voltage:48VDC

Output Current: 100A

Efficiency: ≥97%

Model No.: ATD6K-540S27-W

Output Power：6KW

Input Voltage：400~750VDC

Output Voltage：27.5VDC

Output Currant：218A

Efficiency：95%

Model No.: ATD6K-540&640S27-M

Output Power：6KW

Input Voltage：400~750VDC

Output Voltage：27.5VDC

Output Currant：218A

Efficiency：95%

Model No.:ATD6K640S27-TR2481-M

Input voltage range:400~900VDC

Output voltage range:27VDC

Output Power: 6KW

Model No.:ATD-6KW540S24-RD6P0540-27-F/p>

Power:6KW

Input Voltage Range: 400~900VDC

Output Voltage Range: 27VDC

Cooling System: FAN

Model No.:ATRD6K-540S27W

Output Power(KW): 6

Input Voltage Range(VDC): 400 ~ 900 Nominal Input Voltage(VDC): 540

Output Voltage Range(VDC): 0 ~ 32 Rated Output Voltage(VDC): 27

Output Current Continuous(A): 220

Model No.:ATRD10K-600S28W

Output Power(KW): 10

Input Voltage Range(VDC): 450-750 Rated Input Voltage(VDC): 600

Output Voltage Range(VDC): 0-32

Rated Output Voltage(VDC): 28

Model No.:ATRD10K-640S24W

Input Voltage Range(VDC): 400-900 Rated Input Voltage(VDC): 640

Output Voltage Range(VDC): 0-32

Rated Output Voltage(VDC): 24

Model No.ATRDB10K-55S350F

Output Power: 10KW

Input Voltage Range(VDC): 10-60 Rated Input Voltage(VDC): 55

Output Voltage Range(VDC): 0-450

Rated Output Voltage(VDC): 350

Output Current Continuous(A): 28

Model No.: ATRDB10K-55S350W

Output Power(KW): 10

Input Voltage Range(VDC): 10-60 Rated Input Voltage(VDC): 55

Output Voltage Range(VDC): 0-450

Rated Output Voltage(VDC): 350

Model No.:ATV3-V6H4D5.5G

Output Power: DC/AC inverters: 5.5KW, DC/DC converter: 3KW

Input Voltage: 350~750VDC

Output Voltage: 24VDC

Dimensions(mm): 362x290x166

Weight: ≤13.5KG

■   current Rating: 200A ■   Fuse Voltage up to 500 V DC ■   Fuse current rating : 40A ~ 630A

Model No.:RC-MSD5-250A(280A)(315A)(350A)(400)(500A)(630A)/750V-A(B)-TW

current RATING:25A(300A in 30 mins)

Voltage rating:750V.DC

Model No.:300V_RC-EV-TS32A(B,C)-B-TW

Voltage(Vdc):300V DC

Current(A):Big Terminal7A, Small5A

Temperature: -40°C - +125°C

Shield: Non

HVIL: Non

Model No.:RS4-K18TY-DW-B, RS4-J12ZY-AH-B

Voltage(Vdc):300V DC

Current(A):7A

Temperature: -40°C - +125°C

Shield: Non

HVIL: Non

Model No.RS4K8-RS4J8TY(ZY)-NH(AR)(BH)(CR)-A

Voltage(Vdc):300V DC

Current(A):13A

Temperature: -55°C - +125°C

Shield: Non

HVIL: Non

Model No.:ATM7K5-540S24M-V6H4D7.5G

DC supply voltage range: DC 350V—750V

Controller communication mode:CAN 2.0

Low voltage power consumption:≤12W

Heat dissipation:0.2KW

Efficiency:≥93%

Model No.:250A_REG1-2WTP-N(A)(B)(C)-H-50(25)(35)(70)-A

Voltage rating: 1000V DC

Withstand voltage: 5000V AC

Insulation resistance: 5000MΩ/1000V DC

Shielding: optional
