Manual Service Disconnector(MSD7)

■ Fuse current: Voltage 750V.DC 200A - 400A ; Voltage 500V.DC 500A ■ Current Rating : 250A

代碼: HV_CONNECTOR_MSD7

2/3POS High Voltage plastic connector with shield(RED)

Main applying to battery heating positive temperature coefficient(PTC), OBC, PDU, Compressor.

代碼: HV_CONNECTOR_RED

REG2_750Vdc 80A-200A 2/3 POS with Shield/HVIL

Voltage rating: 750V DC

Withstand voltage: 3000V AC 1min

Insulation resistance: 5000MΩ

Shielding: optional

HVIL: Yes

代碼: HV_CONNECTOR_REG

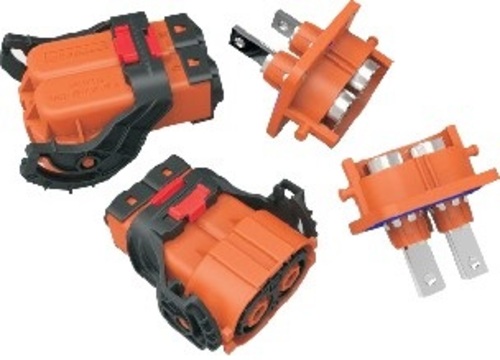

REG1_1000Vdc 120A-250A 2 POS with Shild/HVIL

Voltage rating: 1000V DC

Withstand voltage: 5000V AC

Insulation resistance: 5000MΩ/1000V DC

Shielding: optional

HVIL: YES(HVIL is normal, Non-HVIL is optional)

代碼: HV_CONNECTOR_REG1

REN1_1000Vdc 80A-125A 2 POS with Shield/HVIL

Model No.: 2TAH-25P-B-TW / 2ZPATH-B-TW

Current rating: 80A=16mm

125A=25mm

Voltage rating: 1000V DC

Shield: Option

HVIL: Option

Temperature range: -40° ~+140°

代碼: HV_CONNECTOR_REN1

High Voltage Metal Shell Connector(REQ4)

Voltage rating:1000V DC

Contact resistance: ≤3mΩ

Withstand voltage: ≥ 3000V AC 1Min

Insulation resistance: ≥ 3000MΩ(≤40°C, ≤50%RH);

≥ 300MΩ(>95%RH)

Mating cycle: 20 times

代碼: HV_CONNECTOR_REQ4

RS4_300Vdc 7A 12/18 POS N-Shield/HVIL

Applying to battery management system and other EV signal control system.

代碼: HV_CONNECTOR_RS4

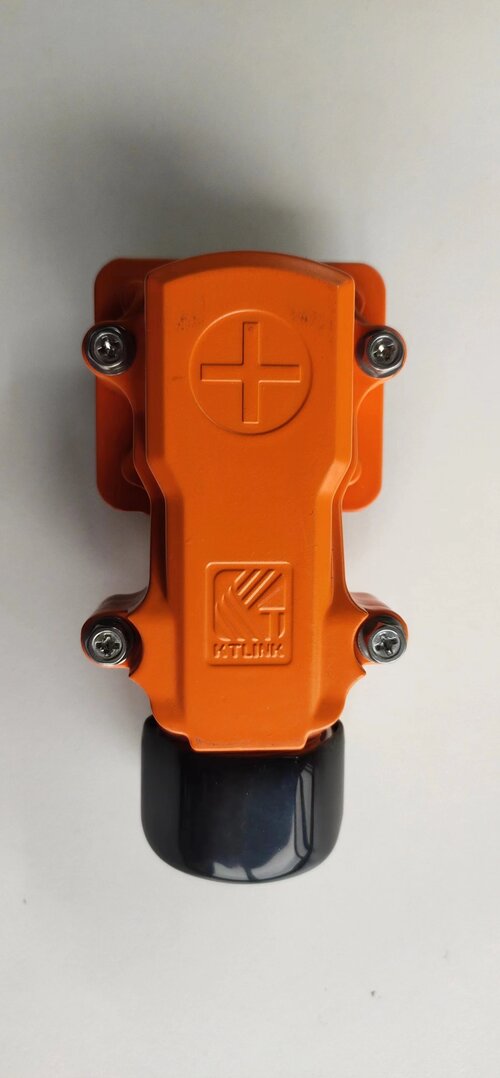

MINI-S50/S70_750Vdc 200-250A 1 POS with Shield/HVIL

Current rating: 200A=50mm²

250A=70mm²

Voltage rating:750V DC

Insulation resistance:≥5000 MΩ

Shielding:optional

HVIL: optional

Temperature range: -40° ~+125°

代碼: MINI-S50-1Z-M10-TW

REL_1000Vdc 16A-60A 2/4 POS with Shield/HVIL

Model No.: T2PAH-10-A / Z2PAH-10-A

Current rating: 16A=2.5mm

25A=4mm

40A=6mm

60A=10mm

Voltage rating: 1000V DC

Shield: Option

HVIL: Option

Temperature range: -40° ~+140°

代碼: REL

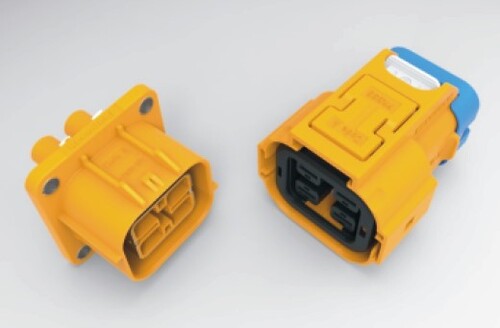

4POS High Voltage Plastic Shell Connector With Shield(REL2)

Model No.; T4PAH-6-B / Z4PAH-6-B

Current rating: 16A=2.5mm

25A=4mm

40A=6mm

Voltage rating: 1000V DC

Shield: Option

HVIL: Option

Temperature range: -40° ~+140°

代碼: REL2

HV_Connector_REMII

Current rating:16A(For2.5mm2cable);

25A(For4mm2cable);

40A(For6mm2cable);

Voltage rating:700V DC

Withstand voltage:3000V AC 1 min

Insulation resistance:3000MΩ

Shielding:optional

HVIL: optional

代碼: REM_II

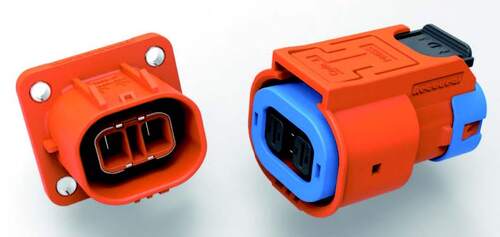

REMIII_1000Vdc 16A-40A 2 POS with Shield/HVIL

● Model No.: T2PAH-6-B-TW / Z2PAH-6-B-TW

● 2POS

● Plastic Shell

● Locking handle and Secondary locking structure

● False-proof design (IPXXB)

● IP Degree: IP6K9K、IP68

● Cable Size: 2.5mm

代碼: REMIII

12KW DC/DC Converter-Liquid

Model No.: ATD12K-3682280350-W

Power: 12KW

Input Voltage: 30~100VDC

Output Voltage:250-400VDC

Output Current:40A

Efficiency:＞98%

代碼: 12KW_DCDC_Series

150 KW Fuel Cell DC/DC Converter

Model No.: ATD150K03-W、ATD150K-90S900-W

Power: 150KW

Input Voltage: 90~500VDC

Output Voltage:400-750VDC、400-900VDC

Output Current:300A

代碼: 150KW_DCDC

1.5KW DC/DC Converter Natural Cooling System

Model No.:ATD1K5-4812-A

Output Power：1.5KW

Input Voltage：30~58VDC

Output Current：110A

Output Voltage：14VDC

Dimensions：220x250x60mm

Protection Level：IP67

代碼: 1K5_DCDC

1.5KW DC/DC Converter Fan

Model No.: ATD1K5-380S14-A

Power:1.5KW

Input Voltage:250~450VDC/400~750VDC

Output Voltage:13.8VDC

Output Current:109A

Efficiency:95%

代碼: 1K5_DCDC_Air

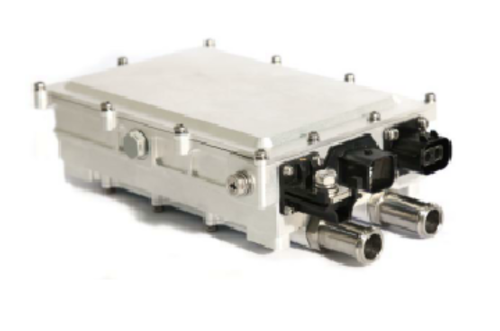

1.5KW DC/DC Converter Liquid System

Model No.:ATD1K5-380S14-W

Power:1.5KW

Input Voltage:250~450VDC/400~750VDC

Output Voltage:13.8VDC

Output Current:109A

Efficiency:95%

代碼: 1K5_DCDC_Liquid

1.5KW DC/DC Converter Module

Model No.:ATD1K5-380S14-M

Power:1.5KW

Input Voltage:250~450/400~750VDC

Output Voltage:13.8VDC

Output Currant:109A

Efficiency:95%

代碼: 1K5_DCDC_Module

2.5KW DC/DC Converter-Liquid

Model No.:ATD2K5-380S14-W

Power:2.5KW

Input Voltage:250~450VDC

Output Voltage:13.8VDC

Output Current:181A

Efficiency:95%

代碼: 2K5_DCDC_Liquid

2.5KW DC/DC Converter Module

Model No.:ATD2K5-540S14-M

Power:2.5KW

Input Voltage:400-750VDC

Output Voltage:13.8VDC

代碼: 2K5_DCDC_Module

2KW DC/DC Converter-Fan

Model No.:ATD2K-380S14-A、ATD2K-540S14-A

Power:2KW

Input Voltage:250~450 400~750VDC

Output Voltage:13.8VDC

Output Currant:145A

Efficiency:95%

代碼: 2KW_DCDC_Fan

2KW DC/DC Converter-Liquid

Model No.:ATD2K-380S14-W

Power:2KW

Input Voltage:250~450/400~750VDC

Output Voltage:13.8VDC

Output Currant:145A

Efficiency:95%

代碼: 2KW_DCDC_Liquid

2KW DC/DC Converter-Module

Model No.:ATD2K-380S14-M

Power:2KW

Input Voltage:250~450/400~750VDC

Output Voltage:13.8VDC

Output Currant:145A

Efficiency:95%

代碼: 2KW_DCDC_Module

300W DC/DC Converter Natural Cooling System

Model No.:ATD300-540S24-N

Power:300W

Input Voltage:200~800 VDC

Output Voltage:12/24VDC

Output Current:25/12.5A

代碼: 300W_DCDC_converter
