Combo 6.6KW OBC+2.5KW DC/DC Converter

Model No.:AR2K5D6K6B-270S400L-I

Power:6.6 KW OBC+2.5KW DC/DC

Input Voltage:

OBC:85~265VAC DCDC:270~450VDC

Output Voltage:

OBC:270~450VAC DCDC: 9~16VDC

Output Current:

OBC:22A DCDC:180A

Efficiency:≧92%

代碼: AR2K5D6K6B

Combo 6.6KW OBC+1.5KW DC/DC Converter

Model No.:AT1K5D6K6B-D14B144-LF

Power:6.6KW OBC+1.5KW DC/DC

Input Voltage:OBC:

85-265VAC DCDC:88~195VDC

Output Voltage:

OBC:95~202VDC DCDC:14VDC

Output Current:

OBC:46 20A DCDC:110A

Efficiency:≧94%

代碼: AT1K5D6K6B-D14B144LF

Combo 6.6KW OBC+1.5KW DC/DC Converter

Model No.:AT1K5D6K6B-D14B144-LW

Power:6.6KW OBC+1.5KW DC/DC

Input Voltage:

OBC:85-265VAC DCDC:88~195VDC

Output Voltage:

OBC:95~202VDC DCDC:14VDC

Output Current:

OBC:46 20A DCDC:110A

Efficiency:≧94%

代碼: AT1K5D6K6B-D14B144LW

Combo 3.3KW OBC+1.5KW DC/DC Converter

Model No.:AT1KD3K3B-D14B144-MW

Power:3.3KW OBC+1.5KW DC/DC

Input Voltage:

OBC:85-265VAC/DCDC:88~195VDC

Output Voltage:

OBC:95~202VDC/DCDC:14VDC

Output Current:

OBC:23/10A/DCDC:110A

Efficiency:≧94%

代碼: AT1KD3K3B-D14B144-MW

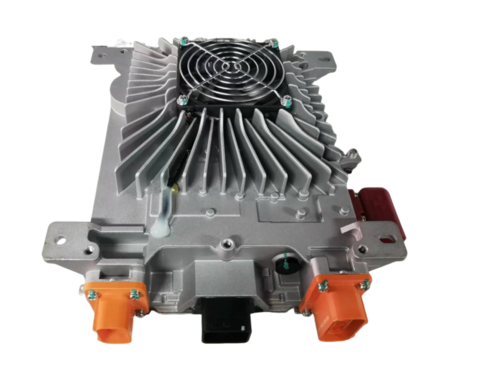

Combo 3.3KW OBC+1KW DC/DC Converter

Model No.:AT1KD3K3B-D14B72-MF

Power:3.3KW OBC+1KW DC/DC

Input Voltage:

OBC:85~265VAC DCDC:44~97VDC

Output Voltage:

OBC:50~107VDC DCDC:14VDC

Output Current:

OBC:40A DCDC:72A

Efficiency:≧94%

代碼: AT1KD3K3B-D14B72-MF

Combo 6.6KW OBC+2KW DC/DC Converter

Model No.:AT2KD6K6B-D14B312-LF

Power: 6.6KW OBC+2KW DC/DC

Input Voltage:

OBC:85-265VAC DCDC:206~454VDC

Output Voltage:

OBC:200~450VDC DCDC:14VDC

Output Current:

OBC:20A DCDC:143A

Efficiency:≧94%

代碼: AT2KD6K6B-D14B312-LF

Combo 6.6KW OBC+2KW DC/DC Converter

Model No.:AT2KD6K6B-D14B312-LW

Power:6.6KW OBC+2KW DC/DC

Input Voltage:

OBC:85-265VAC DCDC:206~454VDC

Output Voltage:

OBC:200~450VDC DCDC:14VDC

Output Current:

OBC:20A DCDC:143A

Efficiency:≧94%

代碼: AT2KD6K6B-D14B312-LW

Combo PDU+6.6KW OBC+2KW DC/DC Converter

Model No.:AT3HD2KC6K6-D14C380-W

Power:PDU+6.6KW OBC+2KW DC/DC

Input Voltage:

OBC:85~265VAC DCDC:250~450VDC

Output Voltage:

OBC:250~450VDC DCDC:9~16VDC

Output Current:

OBC:20A DCDC:180A

Efficiency:≧94%

代碼: AT3HD2K5CB6K6

Combo 2.7KW DC/DC Converter 11KW OBC PDU with Inverter

Model No.:AT3HD3KCB11KB-D14C380-W

Power:PDU+11KW OBC+2.7KW DC/DC

Input Voltage:

OBC:304~456VAC DCDC:250~450VDC

Output Voltage:

OBC:270~450VDC DCDC:9~16VDC

Output Current:

OBC:32A DCDC:192A

Efficiency:≧94%

代碼: AT3HD3KCB11KB

Combo 6.6KW OBC+2.2KW DC/DC Converter

Model No.:ATD2K2CB6K6-D14C750-W

Power:6.6KW OBC+2.2KW DC/DC

Input Voltage:

OBC:85~265VAC DCDC:500~850VDC

Output Voltage:

OBC:500~850VDC DCDC:9~16VDC

Output Current:

OBC:10A DCDC:158A

Efficiency:≧94%

代碼: ATD2K2C6K6B-D14C750

Combo 2KW DC/DC Converter 6.6KW OBC Bidirectional

Model No.:ATD2KCB6K6-D14C380-W

Power:6.6KW OBC+2KW DC/DC

Input Voltage:

OBC:85-265VAC DCDC:250-450VDC

Output Voltage:

OBC:250-450VDC DCDC:9~16VDC

Output Current:

OBC:20A DCDC:180A

Efficiency:≧94%

代碼: ATD2KCB6K6-D14380-W

Combo 3KW DC/DC Converter 11KW OBC Bidirectional

Model No.:ATD3KCB11K-D14C380-W

Power:11KW OBC+3KW DC/DC

Input Voltage:

OBC:304~456VAC DCDC:250~450VDC

Output Voltage:

OBC:250~450VDC DCDC:9~16VDC

Output Current:

OBC:32A DCDC:218A

Efficiency:≧94%

代碼: ATD3KC11KB-D14C380

Battery Disconnect Unit (BDU)

･ Security System

･ Current Control System

･ Voltage & Current Protection System

･ Battery Power integration & Protection System

･ BMS Communication and CAN Acquisition System

代碼: BDU

iBDU10 智慧電池斷路器

Model No.: iBDU 10

Voltage: 800VDC

Current: 600A

Weight: 3.5kg

Dimension: 300*150*88 mm

符合IEC60947-2和NB/T10330標準

ISO9001 IATF/TS16949 ISO14001認證

塑膠外殼、環氧樹酯和電路板元件符合UL 94-V0

代碼: IBDU10

iPDU12 智慧配電箱

Model No.: iPDU 12

Voltage: 1500VDC

Current: 300A

Weight: 3.5kg

Dimension: 255*130*140 mm

符合IEC60947-2和NB/T10330標準

ISO9001 IATF/TS16949 ISO14001認證

塑膠外殼、環氧樹酯和電路板元件符合UL 94-V0

代碼: IPDU12

Multi Integrated PDU

･ Security System

･ Current Control System

･ Power Protection System

･ Power integration & Distribution System

･ Communication and CAN Acquisition System

代碼: MULTI_INTEGRATED_PDU

Power Distribution Unit (PDU)

･ Security System

･ Current Control System

･ Power Protection System

･ Power integration & Distribution System

･ Communication and CAN Acquisition System

代碼: PDU

Battery Swap Connector

Model No.: PFSC-TQA-BS1270/PFSC-TQA-CP1270

Current Rating: 300A

Voltage Rating: 750V DC

Shield: Option

HVIL: Option

Temperature: -40°C ~+125°C

代碼: BATTERYSWAPCONNECTOR

Manual Service Disconnector(MSD2)

Working Temperature: -40°C ~+125°C

Relative humidity: 95%(40°C)

Vibration: 10~55GHz, amplitude 0.75mm

Mechanical Shocks: 980m/s^2

Handle lock after retention: ≥200N

代碼: HV_CONNECTOR_MSD2

Manual Service Disconnector(MSD7)

■ Fuse current: Voltage 750V.DC 200A - 400A ; Voltage 500V.DC 500A ■ Current Rating : 250A

代碼: HV_CONNECTOR_MSD7

2/3POS High Voltage plastic connector with shield(RED)

Main applying to battery heating positive temperature coefficient(PTC), OBC, PDU, Compressor.

代碼: HV_CONNECTOR_RED

REG2_750Vdc 80A-200A 2/3 POS with Shield/HVIL

Voltage rating: 750V DC

Withstand voltage: 3000V AC 1min

Insulation resistance: 5000MΩ

Shielding: optional

HVIL: Yes

代碼: HV_CONNECTOR_REG

REG1_1000Vdc 120A-250A 2 POS with Shild/HVIL

Voltage rating: 1000V DC

Withstand voltage: 5000V AC

Insulation resistance: 5000MΩ/1000V DC

Shielding: optional

HVIL: YES(HVIL is normal, Non-HVIL is optional)

代碼: HV_CONNECTOR_REG1

REN1_1000Vdc 80A-125A 2 POS with Shield/HVIL

Model No.: 2TAH-25P-B-TW / 2ZPATH-B-TW

Current rating: 80A=16mm

125A=25mm

Voltage rating: 1000V DC

Shield: Option

HVIL: Option

Temperature range: -40° ~+140°

代碼: HV_CONNECTOR_REN1
